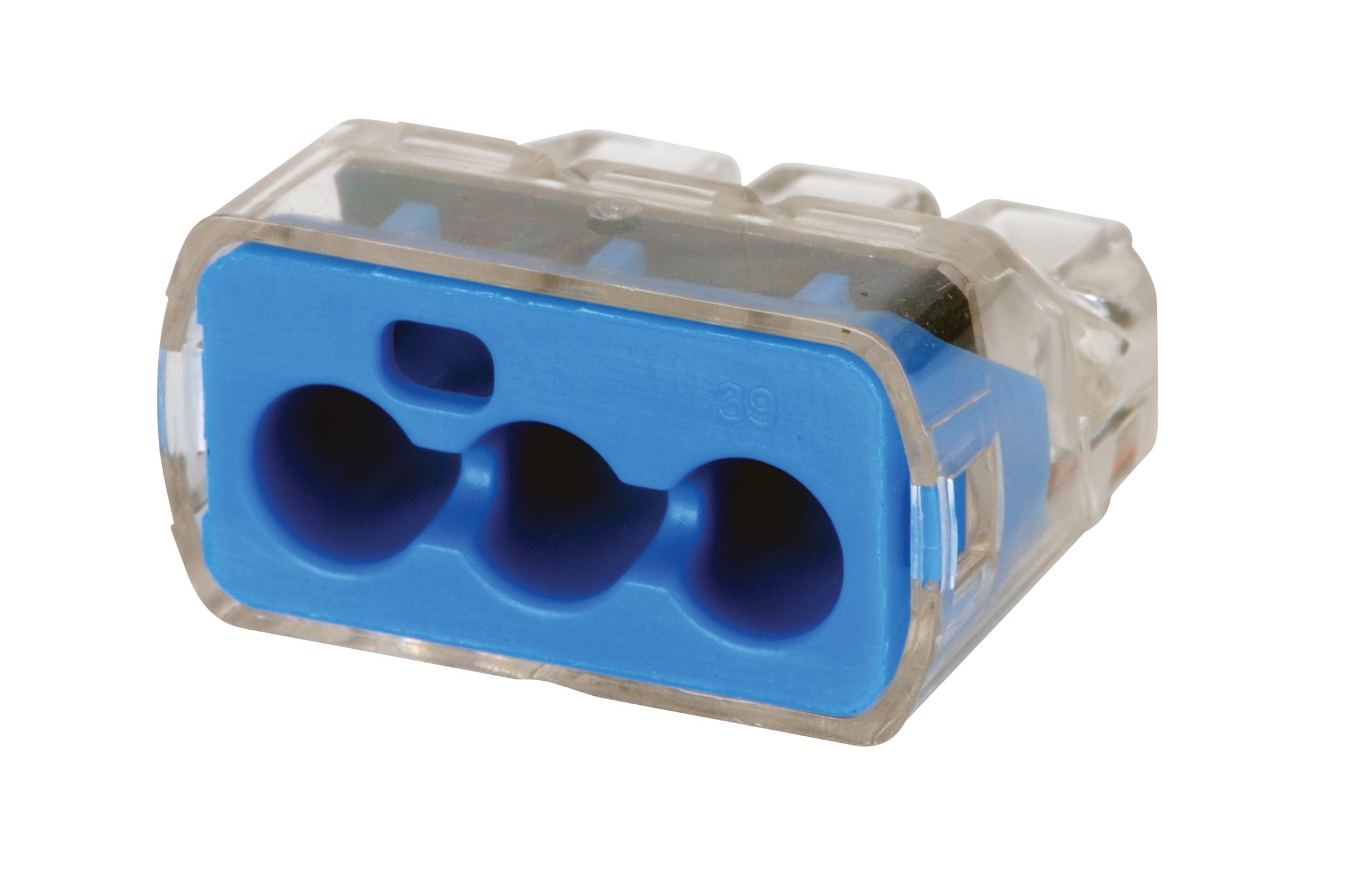

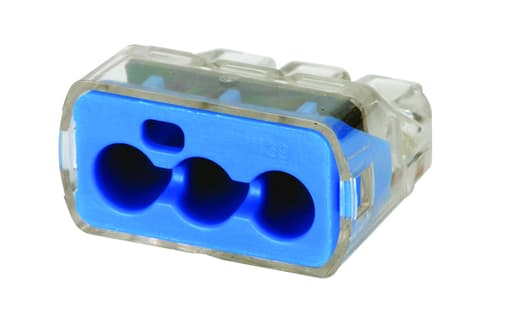

Ideal Industries - Ideal 30-1039J Push-In Wire Connector, 10AWG 3-Port (150/Jar)

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783250693658

  • Applications - For Grounding and Bonding Applications

  • Buy American - Y

  • Catalog Number - 30-1039J

  • Color - Blue

Packaging

  • 1 ea

EAN

00783250693658

Part #

182130

Catalog #

30-1039J

Commercial reference

30-1039J

12-Digit UPC:

783250693658

Applications:

For Grounding and Bonding Applications

Buy American:

Y

Catalog Number:

30-1039J

Color:

Blue

Conductor Size:

14-10 AWG/12-10 AWG

ERP_productname:

IDE 30-1039J 10AWG,PUSH-IN,3-PORT,150 JAR

Family Brand Name:

Ideal Industries

Material:

Nylon

Size:

0.780 IN Length X 086 IN Width X 0.450 IN Height

Sub Brand:

In-Sure™

Tc Connection:

3 Ports

Type:

3-Port

Voltage:

600 Volt

Wire Size:

14-10/12-10 AWG

SoneparProductId:

SKU_US_25758244

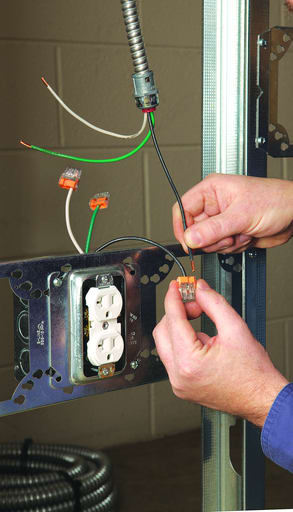

Strip, push, connect . the fastest way to make a connection.The In-Sure® Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used. Simply push the wire in . the low insertion force makes it easy.The color-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection. The ergonomic design is easier to grip which means more comfortable push-in connections. The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.UL Listed, CSA Certified, and rated to 600V . the In-Sure® saves time and improves productivity while perfecting connections. Features: Ergonomic design for easy grip and comfortable installation; Low insertion force for fast and easy connections; Compact size makes installation easy; Clear shell gives visual verification of connection; Tough, UL 94V-2 flame-retardant shell rated at 105±C (221±F); Approved for bonding and grounding applications
