Ideal Industries - Ideal 30-1066 Underground Wire Connector, Blue/Blue 66 (50/Box)

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783250761876

  • Applications - Damp/Wet Location or Direct Burial/Below-Grade Applications

  • Buy American - Y

  • Catalog Number - 30-1066

  • Color - Gray

Packaging

  • 1 ea

EAN

00783250761876

Part #

189581

Catalog #

30-1066

Commercial reference

30-1066

12-Digit UPC:

783250761876

Applications:

Damp/Wet Location or Direct Burial/Below-Grade Applications

Buy American:

Y

Catalog Number:

30-1066

Color:

Gray

Conductor Size:

14-6 AWG

ERP_productname:

IDE 30-1066 UNDERGRD GRAY MDL 66 50 BOX

Family Brand Name:

Ideal Industries

Finish:

Zinc

Length:

2.26 Inch

Material:

Thermoplastic

Sub Brand:

UnderGround®

Type:

Flame Retardant, Winged

Voltage:

600 Volt

SoneparProductId:

SKU_US_25632031

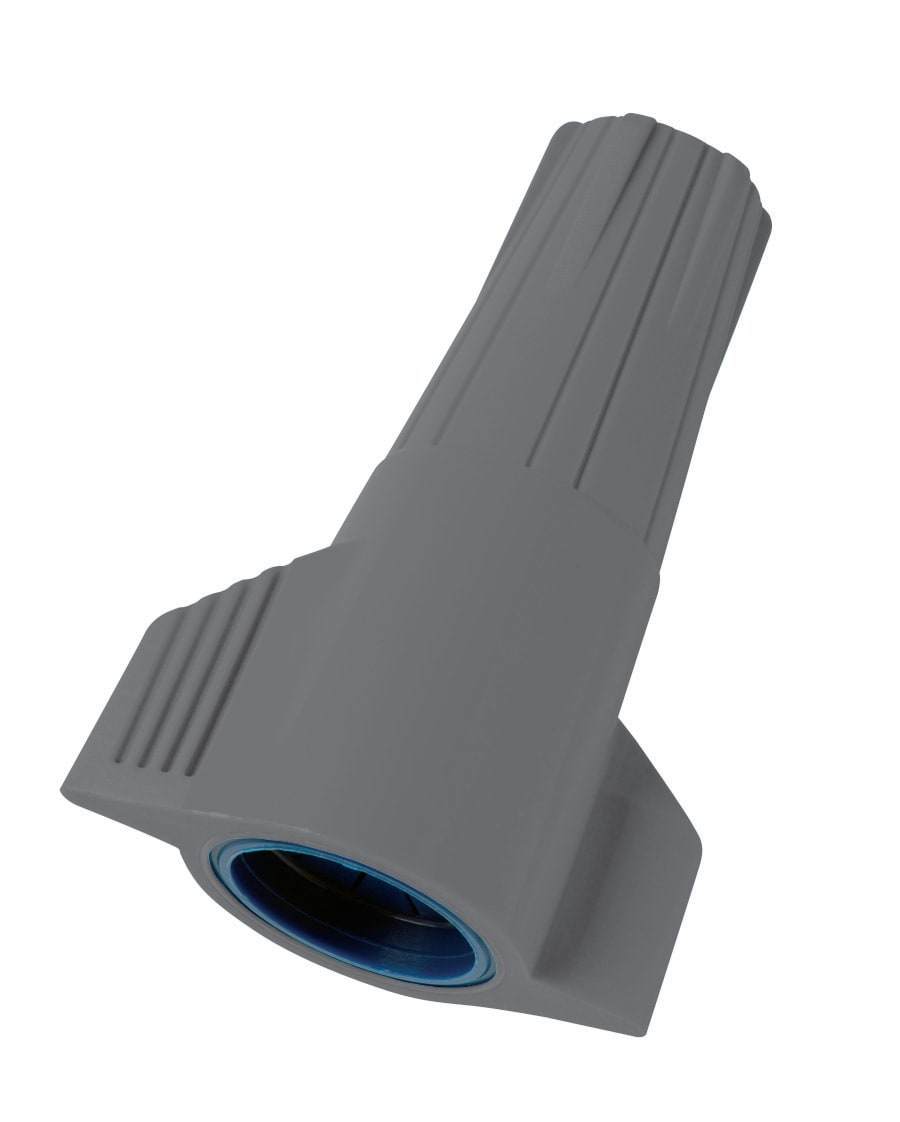

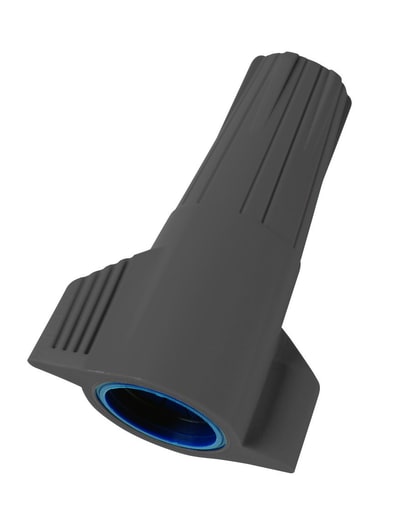

The connector made specifically for harsh under ground environments.UnderGround Wire Connectors are designed to secure and protect wire connections in a wide variety of below-grade, wet location and direct burial applications. Quick and easy application saves time and energy, eliminating the need for heat shrink, resin-packs, and multi-step corrosion kits.With an expanding, live-action spring and pre-filled with a silicone-based sealant, UnderGround Wire Connectors make fast, secure, and long lasting connections. The tough, thermoplastic shell provides extra protection against accidental impacts and the deep skirt provides superior moisture resistance, making these connectors UL Listed to 486G for use in damp, wet or direct burial, below-grade applications.Yellow MudBug® Utility Wire Connectors off the same moisture and corrosion resistant properties as the UnderGround connectors but are designed for utility tracer line applications.Due to the pre-filled silicone sealant, UnderGround and MudBug® Utility Wire Connectors are designed as a one-use only connection.Not for use in continual submersion applications. Features: 100% Silicone-based sealant protects against moisture and corrosion; UL Listed to 486G Sealed Twist-On Wire Connector for use in damp/wet locations or above-grade applications; Easy to apply, pre-filled twist-on wire connectors; Expanding, live-action square-wire spring for fast, secure and long-lasting connections; Deep skirt provides superior moisture resistance to protect connections; Tough, UL 94V-2 flame-retardant shell rated at 105±C (221±F); For use in damp/wet location or direct burial/below-grade applications
