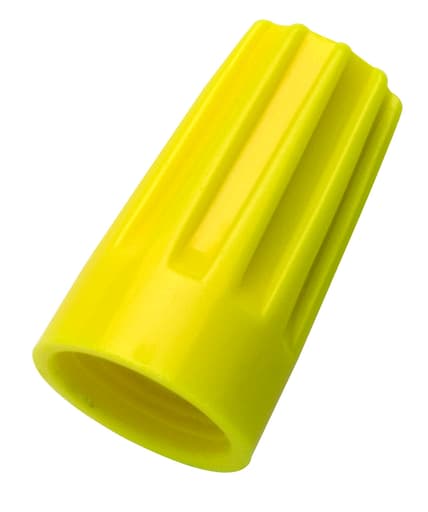

Ideal Industries - Ideal 30-274 Yellow Wire-Nut® (74B), #18 to #12 AWG / 600v (500/Bag)

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783250302741

  • Applications - Insulating or Joining 2 or more conductors

  • Buy American - Y

  • Catalog Number - 30-274

  • Color - Yellow

Packaging

  • 1 ea

EAN

00783250302741

Part #

179706

Catalog #

30-274

Commercial reference

30-274

12-Digit UPC:

783250302741

Applications:

Insulating or Joining 2 or more conductors

Buy American:

Y

Catalog Number:

30-274

Color:

Yellow

Conductor Size:

12 AWG

ERP_productname:

IDE 30-274 SIZE 74B YEL WIRECONN

Family Brand Name:

Ideal Industries

Finish:

Zinc

Length:

61/64 Inch

Material:

Polypropylene

Number of Conductors:

1,6

Sub Brand:

Wire-Nut®

Type:

Twist-On

Voltage:

600 Volt

SoneparProductId:

SKU_US_25694001

The connector that started it all, an American Classic.The IDEAL Wire-Nut® Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928. As the first screw-on wire connector in America, it literally set the industry standard for years to come.With a fixed, square-wire spring and a positive grip shell, the Wire-Nut® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut® also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.With five color-coded models available, Wire-Nut® Wire Connectors will handle any job from as small as #22 gauge wire up to #6 gauge wire.Additionally, Models 71B®, 72B®, and 73B®, in both color or black high-temp, are the only twist-on wire connectors rated for use in Air Handling Spaces. These connectors can be used on Class 2 or low-voltage connections inside plenums, ducts, and other environmental air handling spaces without the need for a box.The black high-temperature models are designed to withstand the extreme heat build-up found in high-wattage light fixtures and signs. Features: The American Classic since 1928; Fixed, square-wire spring for a grip that will last; Refined range to handle all common applications; Positive grip shell that is perfect to twist-on with fingers; Excellent for fine stranded wire applications; Approved for bonding and grounding applications
