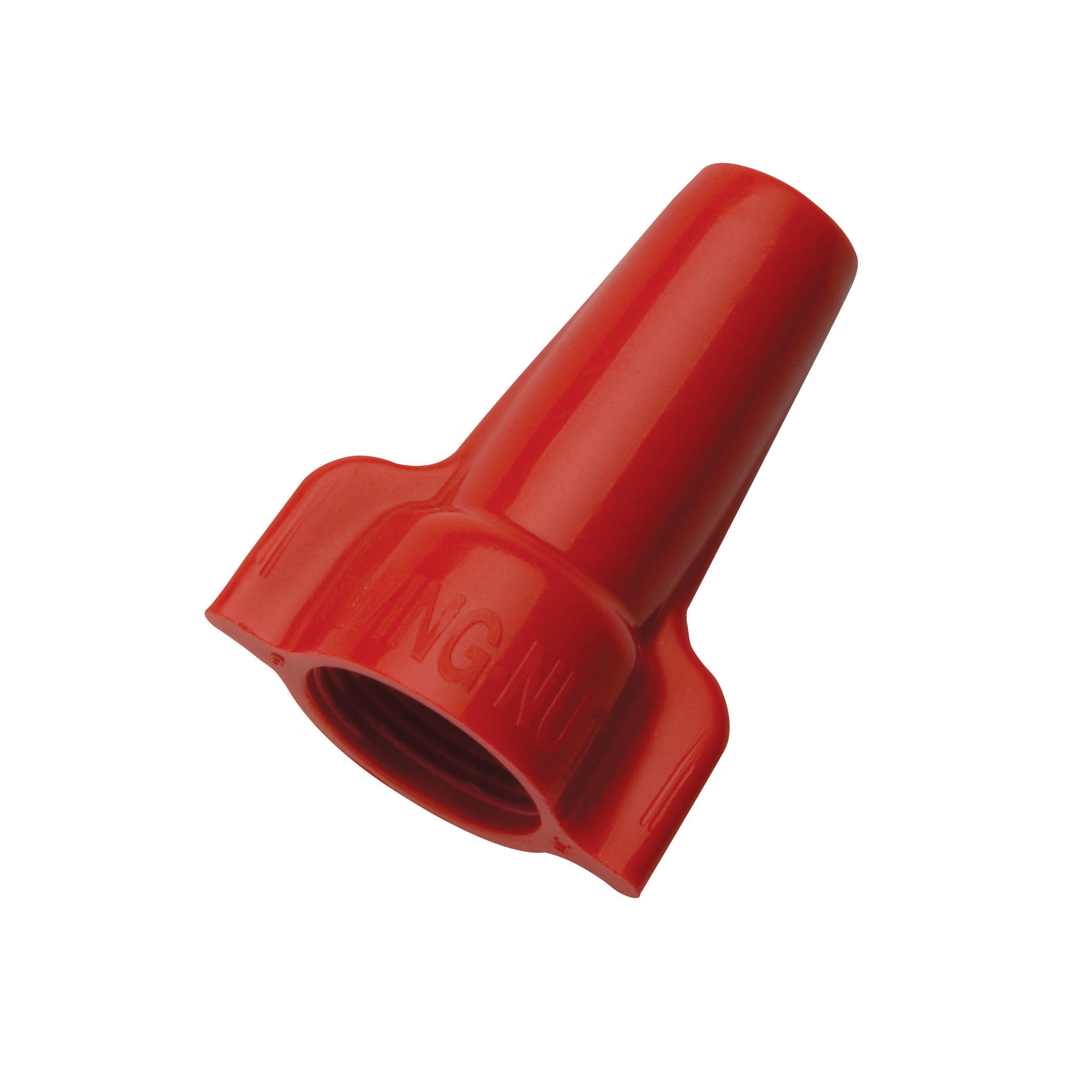

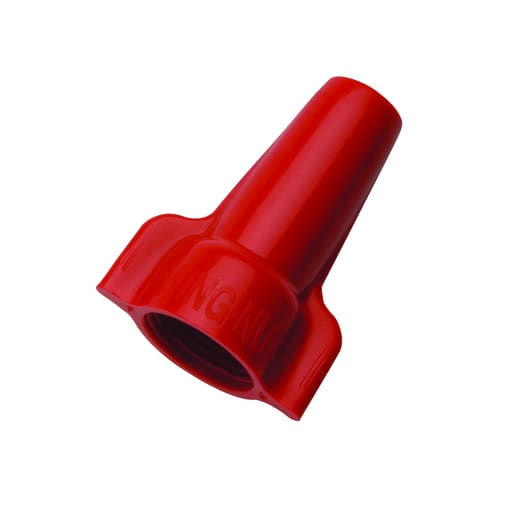

Ideal Industries - Ideal 30-652 Red Wing-Nut® (452), #18 to #10 AWG / 600v (500/Bag)

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783250306527

  • Applications - Insulating or Joining 2 or more conductors

  • Buy American - Y

  • Catalog Number - 30-652

  • Color - Red

Packaging

  • 500 ea

EAN

00783250306527

Part #

101770

Catalog #

30-652

Commercial reference

30-652

12-Digit UPC:

783250306527

Applications:

Insulating or Joining 2 or more conductors

Buy American:

Y

Catalog Number:

30-652

Color:

Red

ERP_productname:

IDE 30-652 SIZE 452 RED WIRECONN WING-NUT WIRE CONNECTOR 500/BAG

Family Brand Name:

Ideal Industries

Material:

Polypropylene

Number of Conductors:

1 to 6

Sub Brand:

Wing-Nut®

Type:

Twist-On

Voltage:

600 Volt

SoneparProductId:

SKU_US_25395311

More power with every twist.The Wing-Nut® Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.The Wing-Nut® also features a tough, copolymer, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands.The Red Model 452® offers the widest range winged connector in the industry from 2 #18 to 4 #10. Features: Largest range in the Industry - from 2 #18 to up 4 #10; High-leverage, contoured wing provides superior torque on every twist; Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it; Copolymer shell expands for smooth, progressive tightening providing dependable connections; Removable for repeat usage on same size or larger combinations
