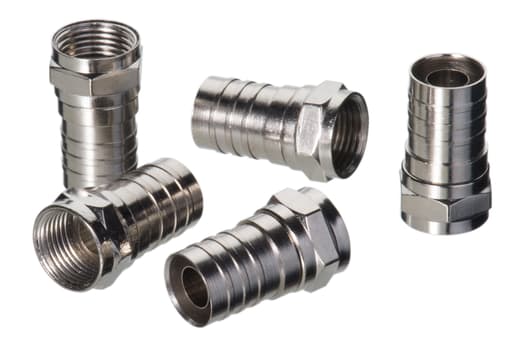

Ideal Industries - Ideal 85-037 F-CONN, RG6 (10/Card)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783250850372
Applications - For Threaded Couplings And Cable Conductors As Contacts For CATV And Other UHF Applications
Catalog Number - 85-037
ERP_productname - IDE 85-037 F-CONN CRIMP PLG 10CRD
Family Brand Name - Ideal Industries
Packaging
10 ea
EAN
00783250850372
Part #
196688
Catalog #
85-037
Commercial reference
85-037
12-Digit UPC:
783250850372
Applications:
For Threaded Couplings And Cable Conductors As Contacts For CATV And Other UHF Applications
Catalog Number:
85-037
ERP_productname:
IDE 85-037 F-CONN CRIMP PLG 10CRD
Family Brand Name:
Ideal Industries
Material:
Brass
Tc Connection:
Crimp-On
Type:
F-Type
SoneparProductId:
SKU_US_25422475
CRIMP PLUG; STRAIGHT; COUPLING STYLE F; RG-6 CABLE; STANDARD PACKAGE 10 PER CARD; IDEAL[R] BRAND Features: Accepts RG-6 coax cables; Designed for use in indoor video applications; Hex crimp cable retention requires .320. hex crimp; Industry standard 1/4. x 1/4. cable preparation; Hex crimp cable retention, requires .320. hex crimp; Nickel plated brass bodies; Designed for 75? coaxial cables; 7/16. nut diameter with 3/8-32 thread; 1) Prepare RG-6 coax with a 1/4. x 1/4. strip, and fold back the braiding.; 2) Slide the connector on to the cable until the white dielectric is flush with the bottom of the nut.; 3) Place connector in IDEAL crimp tool with .320. hex and terminate. Crimp only the back sleeve portion of the connector . not the nut or shoulder area of connector.; 4) Attach connector to device.
