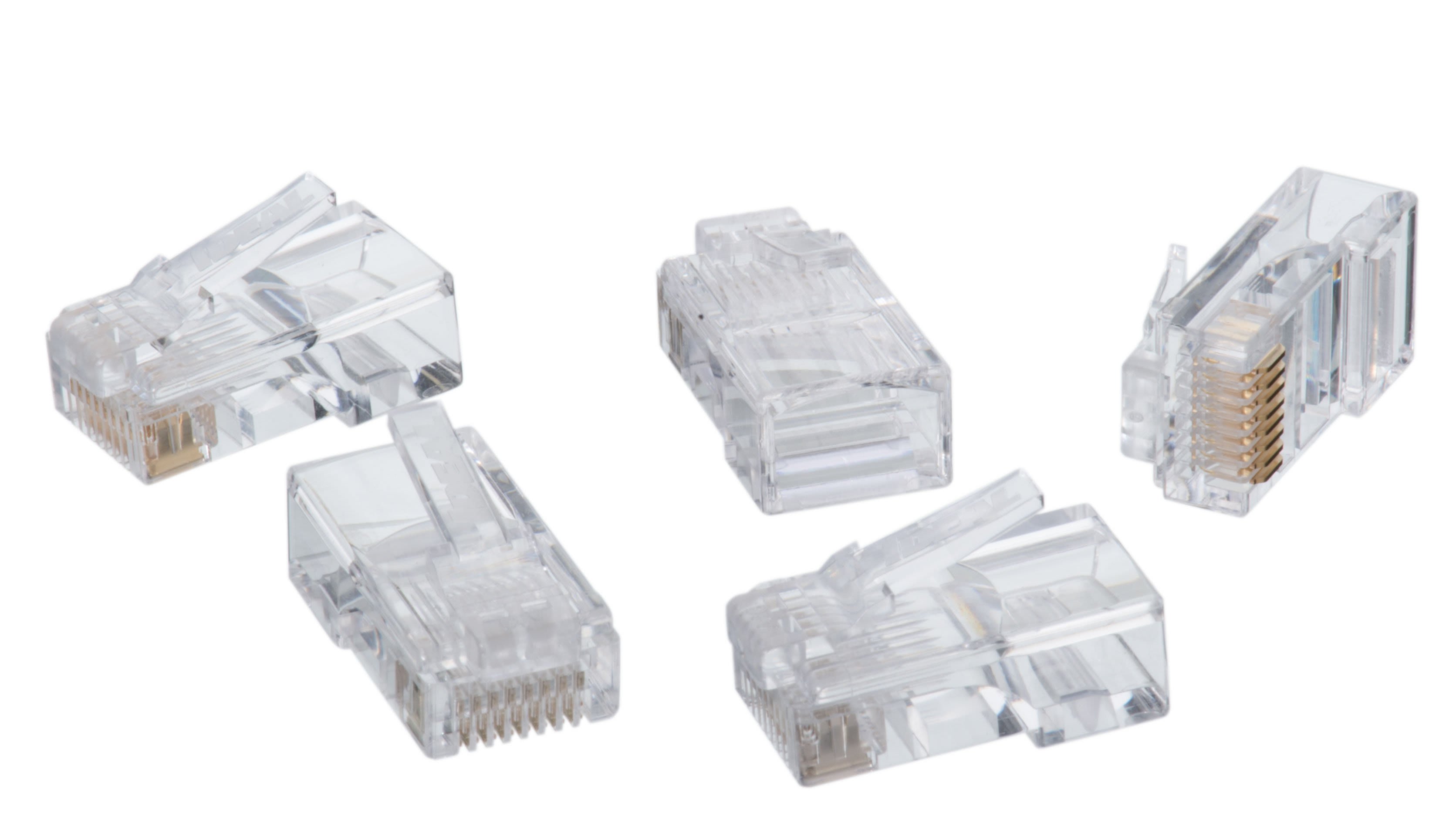

Ideal Industries - Ideal 85-346 RJ-45 8-Position 8-Contact Modular Plug (25/Pkg)

CAT5e 8P8C (eight position/eight contact) modular plug connectors which support TIA/EIA standards for twisted pair cabling up to 100 MHz. IDEAL modular plugs are designed to work seamlessly with the IDEAL Telemaster™ and FT-45™ series of modular plug crimp tools. Plugs are designed and manufactured to support all 100? cable wiring schemes including the widely used TIA-568A and TIA-568B configurations. Features: 8 position, 8 contact RJ-45 modular plug for CAT5e, 100? balanced twisted pair 100 MHz cables; 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles; Complies with industry standard mechanical and electrical specifications for compatibility with compliant modular jacks and ports; Designed to work seamlessly with IDEAL Telemaster™ crimping tools. Also compatible with industry standard modular plug crimping tools meeting specifications.; Three prong contact design for use with solid or stranded 24-26 AWG insulated copper conductors; Three prong contact design for use with solid or stranded 24-26 AWG insulated copper conductors. Max conductor diameter of 0.042\"/1.07mm. Max recommended cable outer jacket diameter 0.270\"/ 6.8mm.; Permanent connection - once crimped they cannot be reused; Primary and secondary strain relief supports to retain cable jacket and minimize conductor movement once crimped; Non-feed through design to prevent external conductor/device shorting and RF signal leakage; Optional external strain relief boots are available.
