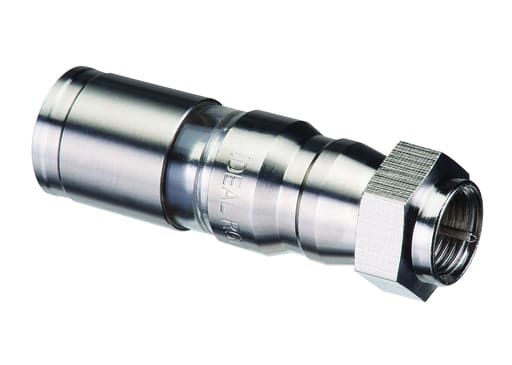

Ideal Industries - Ideal 89-211 RG11 Compression Connectors 10/Card

Installing one-piece compression RG-11 F connectors just got easier. No more uncertainty when inserting the cable into the connector. No more collapsed center pins. No more wasted connectors and rework time on the job.With the patented InSITE™ Technology feature, now standard on all IDEAL RG-11 compression connectors, field termination of these blind entry connectors is simpler, faster and now provides a higher performance connection for all video based applications.The InSITE window is a 360. clear window which allows the installer to verify that the prepped cable has been inserted far enough into the connector to make contact with the fixed pin-before the connector is compressed.All IDEAL compression connectors require a 1/4. x 1/4. industry standard coax preparation. The prepped cable is then inserted into the connector until the folded braiding is visible within the InSITE window. No measuring, no jacket marking, no guesswork . a confident connection every time.A patented compression sleeve design allows Regular (dual), Tri and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.RG-11 sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV and satellite trunk/distribution lines. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aides in cable retentionAn RG-11 Plenum sized version is available and features a fitted mandrel for the smaller diameter plenum cable dielectric and thinner flame retardant jacket material. Features: Features InSITE™ Technology; Accepts RG-11/RG-11 Quad coax cables; Increased ranges of compatible cable jacket diameters . works with more cable types and cable manufacturers; RTQ™ design allows Regular/Tri/Quad shield cables to work in the RG-11 non-plenum connector; Lower cable insertion force . easier to push the connector on to the cable; A redesigned funneled pin entry - centers angled pins, reduces pin collapsing; RTQ™ design allows Regular/Tri/Quad shield cables to work in a single connector . no need to carry cable specific connectors; Designed for use in cable and satellite TV installations; WeatherProof™ - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use; Compresses in 30-793 tool without tool adjustment or adapters; All brass, with nickel plated bodies; Fixed pin won.t come lose or pop out of the connector; Designed for optimal performance on 75? coaxial cables; >40 pounds cable retention on all models; 7/16. nut diameter with 3/8-32 thread
