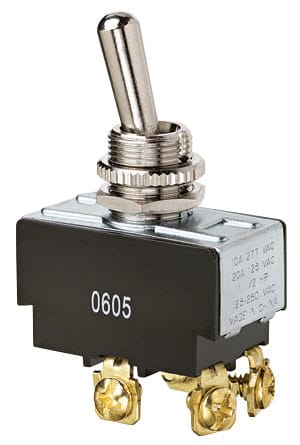

Ideal Industries - Ideal Industries 774014 1-1/2 Hp 10/20 Amp 125 to 277 VAC DPST On-Off Screw Terminal Heavy Duty Toggle Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781789740140
Actuator - Knob
Amperage - 10 Amp
Applications - For Power Tool And Motor Control Switch Applications
Catalog Number - 774014
Packaging
1 ea
EAN
00781789740140
Part #
120552
Catalog #
774014
Commercial reference
774014
12-Digit UPC:
781789740140
Actuator:
Knob
Amperage:
10 Amp
Applications:
For Power Tool And Motor Control Switch Applications
Catalog Number:
774014
ERP_productname:
IDE 774014 DPST TOGGLE SW
Family Brand Name:
Ideal Industries
Mounting Type:
1/2 IN Hole Diameter
Number of Poles:
2 Pole
Size:
1.300 IN Length X 0.760 IN Width X 0.800 IN Height
Tc Connection:
Screw, 4 Terminals
Type:
2 Position
Voltage:
125-277 Volt
SoneparProductId:
SKU_US_25418813
IDEAL, Toggle Switch, Heavy-Duty, On-OFF, Voltage Rating: 125, 227 VAC, Number Of Poles: 2, Amperage Rating: 20, 10 AMP, Action: DPST, Connection: Screw, 4 Terminals, Actuator: Toggle, Contact Rating: Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating, Size: 1.300 IN Length X 0.760 IN Width X 0.800 IN Height, Mounting: 1/2 IN Hole Diameter, Operating Cycles: 100000 Cycles Mechanical Life, Operating Temperature: 32 To 185 DEG F, Dielectric Strength: 1500 V, Finish: Solid Brass/Nickel-Plated Bushings, Hp Rating: 1-1/2 HP At 125 To 250 VAC Features: Great for power tool and motor control switch applications; Rugged long-wearing solid brass/nickel-plated bushings; 1/2 in. diameter mounting hole
