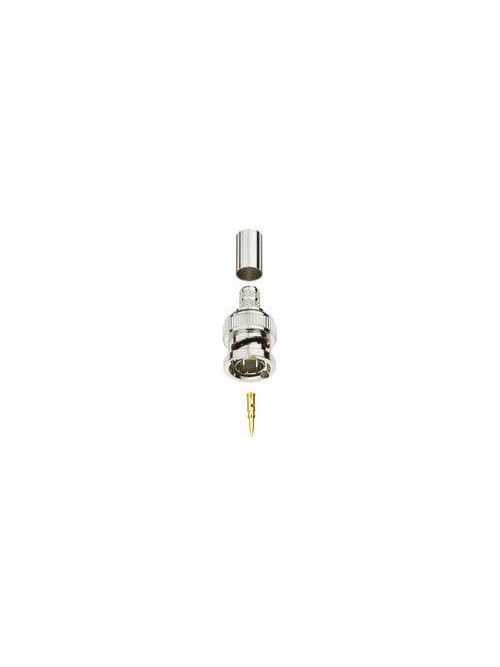

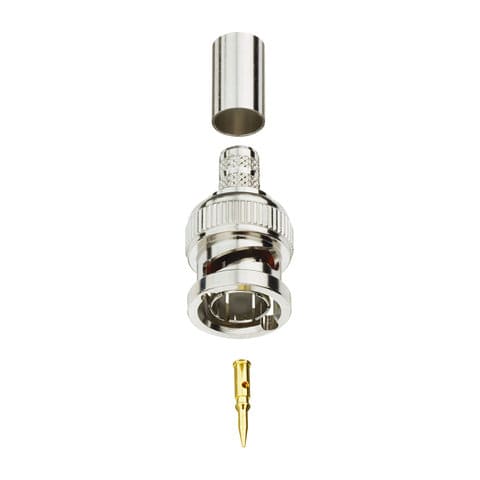

Ideal Industries - Ideal Industries 86-502 Die-Cast Non-Plenum BNC Plug Connector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783250416042
Catalog Number - 86-502
Conductor Size - 20 AWG
ERP_productname - IDE 86-502 20AWG RG59 BNC PLUG
Family Brand Name - Ideal Industries
Packaging
1 ea
EAN
Part #
199860
Catalog #
86-502
Commercial reference
86-502
12-Digit UPC:
783250416042
Catalog Number:
86-502
Conductor Size:
20 AWG
ERP_productname:
IDE 86-502 20AWG RG59 BNC PLUG
Family Brand Name:
Ideal Industries
Finish:
Plated
Impedance:
75 ?
Material:
Nickel Plated Brass, Delrin Insulation
Type:
Commercial Grade, Straight
SoneparProductId:
SKU_US_25473988
BNC Plug, RG-59, Non-plenum, 75 Ohm Features: Commercial grade; #20 AWG solid; Assortment of connectors offer both 50 Ohm and 75 Ohm nominal impedance to match cable impedance to provide maximum performance.; Commercial Grade is an economical die cast product that addresses the applications that do not require machined brass quality.; Specification Grade is a premium high grade, machined brass connector for precision video and data applications.; BNC connectors are designed for such applications as video/broadcast, computers/LAN's and medical equipment.
