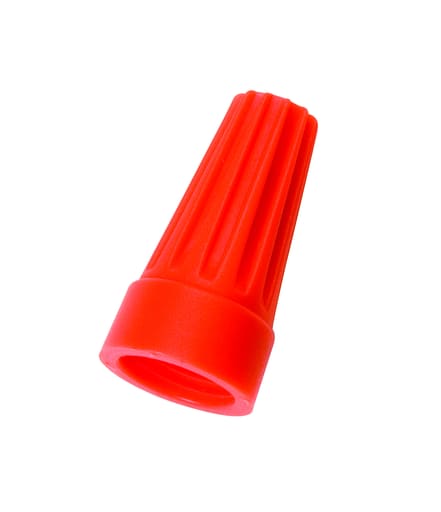

Ideal Industries - Ideal WT3-B Orange WireTwist™ Wire Connector (Bag of 500)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781789610054
Applications - Insulating or Joining 1 or more conductors
Buy American - Y
Catalog Number - WT3-B
Color - Orange
Packaging
1 ea
EAN
00781789610054
Part #
102143
Catalog #
WT3-B
Commercial reference
WT3-B
12-Digit UPC:
781789610054
Applications:
Insulating or Joining 1 or more conductors
Buy American:
Y
Catalog Number:
WT3-B
Color:
Orange
Conductor Size:
14 AWG
ERP_productname:
IDE WT3-B WIRE-TWIST CONN.,ORANGE,BAG500
Family Brand Name:
Buchanan Rubber
Material:
Polypropylene
Number of Conductors:
3,5
Sub Brand:
WireTwist
Voltage:
600 Volt
SoneparProductId:
SKU_US_25338680

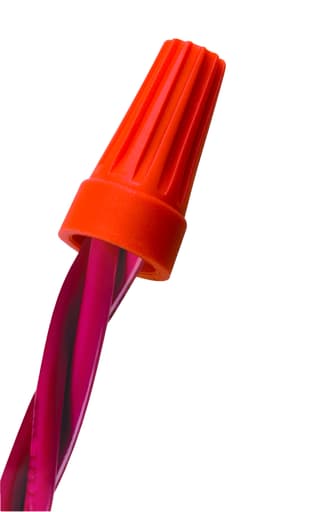

With five, color-coded connectors designed to accommodate hundreds of different solid or stranded wire combinations, WireTwist® Wire Connectors offer an economical connector that brings a lot of value in comfort and performance.The fixed, live-action, square-wire spring threads itself as it draws wires into the connector, creating a secure pressure grip. The rugged, thermoplastic shell withstands extreme environments. The deep, wide-throated skirt protects against flashover and turned back strands providing excellent dielectric protection.The Combination WireTwist®/WingTwist® Kit offers one easy solution for all your twist-on wiring needs. This 620-piece kit features an assortment of all models and sizes of WireTwist® and WingTwist® Wire Connectors in a handy plastic storage case. Perfect for maintenance and small project applications where several different wire connectors are required. Features: Postive grip shell desgined for fast, easy installation; Fixed, square-wire spring creates secure connection; Deep skirt protects against flash-over; Tough, UL 94V-2 flame-retardant shell (105±C / 221±F)
