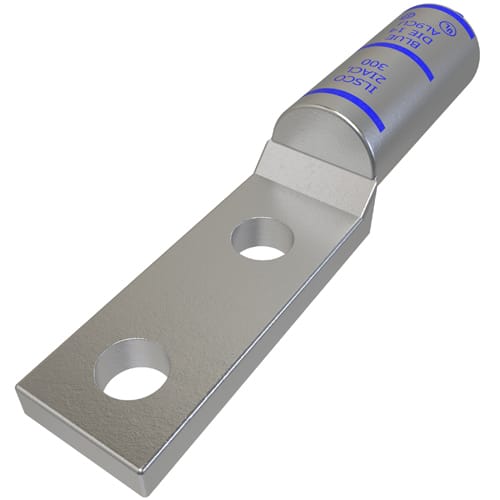

Ilsco - Ilsco 2IACL-300 SureCrimp® Aluminum Compression Lug, Dual Rated, Conductor Size 300, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, No Sight Window, Narrow Tang, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669929409
Applications - Aluminum Compression Lug
Catalog Number - 2IACL-300
Color - Silver
ERP_productname - ILS 2IACL-300 AL CMP 300 9/16-1-3/4 T UL
Packaging
1 ea
EAN
00783669929409
Part #
491407
Catalog #
2IACL-300
Commercial reference
2IACL-300
12-Digit UPC:
783669929409
Applications:
Aluminum Compression Lug
Catalog Number:
2IACL-300
Color:
Silver
ERP_productname:
ILS 2IACL-300 AL CMP 300 9/16-1-3/4 T UL
Family Brand Name:
Ilsco
Size:
L:6;W:1.25;H:1.214 IN
Sub Brand:
ILSCO
Type:
IACL:1&2 HOLE NARROW
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_26127011
ILSCO Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 300 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Blue, primary color Silver, die index 14,
