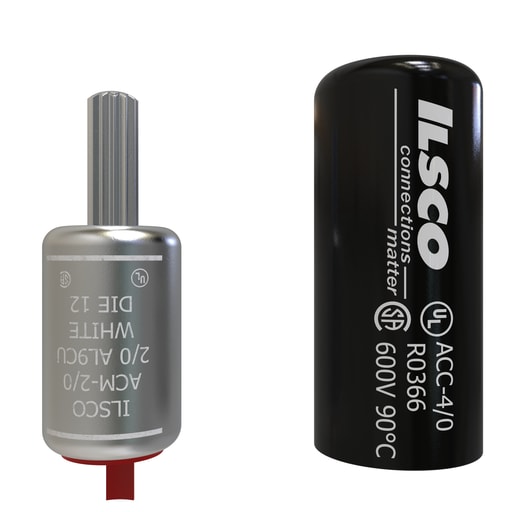

Ilsco - Ilsco ACM-2/0 Aluminum Compression Pigtail Adaptor, Conductor Size 2/0, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669009101
Applications - For Aluminum Pigtail Adaptor
Catalog Number - ACM-2/0
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669009101
Part #
303166
Catalog #
ACM-2/0
Commercial reference
ACM-2/0
12-Digit UPC:
783669009101
Applications:
For Aluminum Pigtail Adaptor
Catalog Number:
ACM-2/0
Color:
Silver
Conductor Material:
Aluminum,Copper
Conductor Size:
2/0 AWG
ERP_productname:
ILS ACM-2/0 2/0AWG ALUM PIN CONN
Family Brand Name:
Ilsco
Heights:
1.03 Inch
Length:
3.14 Inch
Material:
Aluminum
Number of Conductors:
1
Size:
L:3.104;W:1.03;H:1.03 IN
Sub Brand:
ILSCO
Type:
ACM, Long Sleeve, Round/Sector-Shaped
Voltage:
600 Volt
Widths:
1.03 in
SoneparProductId:
SKU_US_25352346
ILSCO Aluminum Pigtail Adaptor, Compression connection, Dual Rated, Aluminum material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 2/0 Str, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code White, primary color Silver, die index 12,
