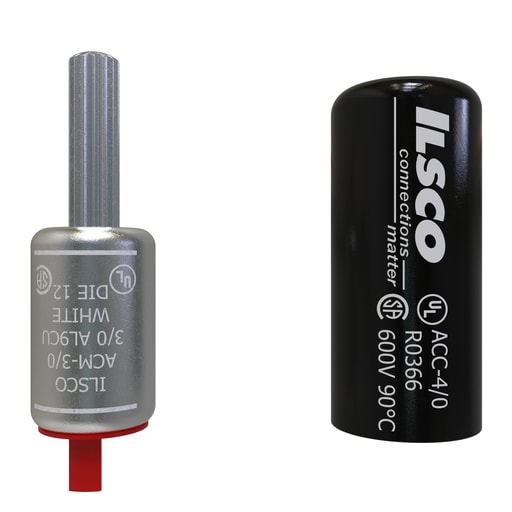

Ilsco - Ilsco ACM-3/0 Aluminum Compression Pigtail Adaptor, Conductor Size 3/0, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669009125
Applications - Terminating Connector
Catalog Number - ACM-3/0
Color - Silver,White
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669009125
Part #
146185
Catalog #
ACM-3/0
Commercial reference
ACM-3/0
12-Digit UPC:
783669009125
Applications:
Terminating Connector
Catalog Number:
ACM-3/0
Color:
Silver,White
Conductor Material:
Aluminum,Copper
Conductor Size:
3/0 AWG
ERP_productname:
ILS ACM-3/0 AL CMP 3/0 T UL CSA PIGTAIL
Family Brand Name:
Ilsco
Heights:
1.03 Inch
Length:
3.484 Inch
Material:
Aluminum
Number of Conductors:
1
Size:
L:3.484;W:1.03;H:1.03 IN
Sub Brand:
ClearChoice
Type:
Long Sleeve, Round
Voltage:
600 Volt
Widths:
1.03 in
SoneparProductId:
SKU_US_25781466
ILSCO Aluminum Pigtail Adaptor, Compression connection, Dual Rated, Aluminum material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 3/0 Str, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code White, primary color Silver, die index 12,
