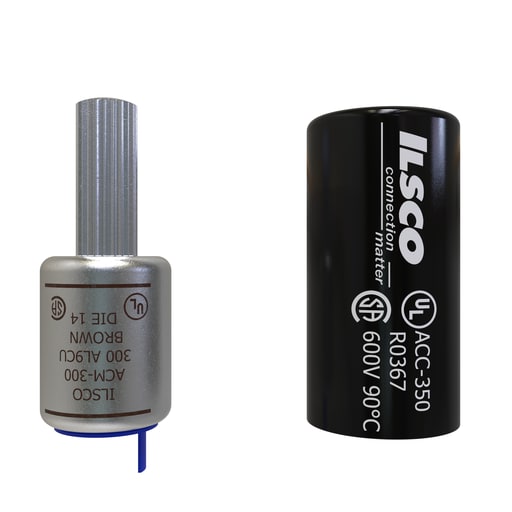

Ilsco - Ilsco ACM-300 Aluminum Compression Pigtail Adaptor, Conductor Size 300, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669009187
Applications - Terminating Connector
Catalog Number - ACM-300
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669009187
Part #
374546
Catalog #
ACM-300
Commercial reference
ACM-300
12-Digit UPC:
783669009187
Applications:
Terminating Connector
Catalog Number:
ACM-300
Color:
Silver
Conductor Material:
Aluminum,Copper
Conductor Size:
300 kcmil
ERP_productname:
ILS ACM-300 300MCM ALUM PIN CONN
Family Brand Name:
Ilsco
Heights:
1.29 Inch
Length:
3.835 Inch
Material:
Aluminum
Number of Conductors:
1
Size:
L:3.835;W:1.29;H:1.29 IN
Sub Brand:
ClearChoice
Type:
Long Sleeve, Round
Voltage:
600 Volt
Widths:
1.29 in
SoneparProductId:
SKU_US_25418336
ILSCO Aluminum Pigtail Adaptor, Compression connection, Dual Rated, Aluminum material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 300 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Brown, primary color Silver, die index 14,
