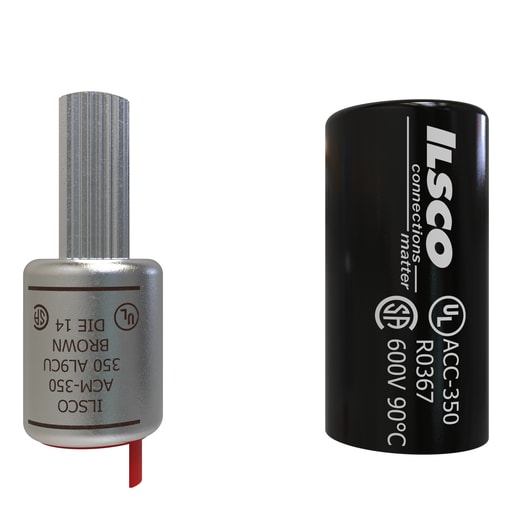

Ilsco - Ilsco ACM-350 Aluminum Compression Pigtail Adaptor, Conductor Size 350, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669009200
Applications - Aluminum Pigtail Adaptor
Catalog Number - ACM-350
Color - Brown
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669009200
Part #
212940
Catalog #
ACM-350
Commercial reference
ACM-350
12-Digit UPC:
783669009200
Applications:
Aluminum Pigtail Adaptor
Catalog Number:
ACM-350
Color:
Brown
Conductor Material:
Aluminum,Copper
Conductor Size:
350 kcmil
ERP_productname:
ILS ACM-350 AL CMP 350 T UL CSA PIGTAIL
Family Brand Name:
Ilsco
Heights:
1.29 Inch
Length:
3.835 Inch
Material:
Aluminum
Number of Conductors:
1
Size:
L:3.835;W:1.29;H:1.29 IN
Sub Brand:
ClearChoice
Type:
ACM:AL PIN
Voltage:
600 Volt
Widths:
1.29 in
SoneparProductId:
SKU_US_25753469
ILSCO Aluminum Pigtail Adaptor, Compression connection, Dual Rated, Aluminum material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 350 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Brown, primary color Silver, die index 14,
