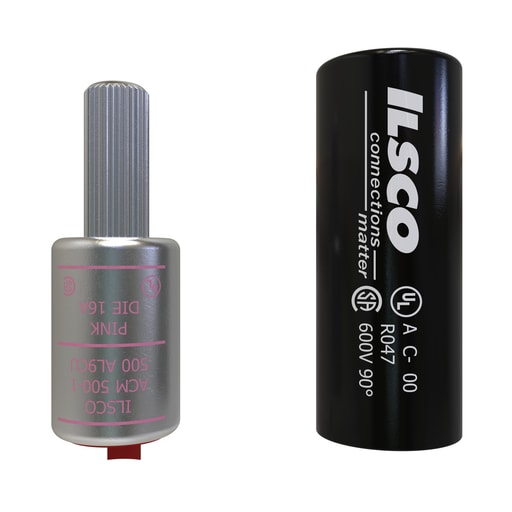

Ilsco - Ilsco ACM-500 Aluminum Compression Pigtail Adaptor, Conductor Size 500, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669009248
Applications - Terminating Connector
Catalog Number - ACM-500
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669009248
Part #
335255
Catalog #
ACM-500
Commercial reference
ACM-500
12-Digit UPC:
783669009248
Applications:
Terminating Connector
Catalog Number:
ACM-500
Color:
Silver
Conductor Material:
Aluminum,Copper
Conductor Size:
500 kcmil
ERP_productname:
ILS ACM-500 AL CMP 500 T UL CSA PIGTAIL
Family Brand Name:
Ilsco
Heights:
1-1/2 Inch
Length:
5.35 Inch
Material:
Aluminum
Number of Conductors:
1
Size:
L:5.35;W:1.5;H:1.5 IN
Sub Brand:
ClearChoice
Type:
Long Sleeve, Round
Voltage:
600 Volt
Widths:
1.5 in
SoneparProductId:
SKU_US_25650067
ILSCO Aluminum Pigtail Adaptor, Compression connection, Dual Rated, Aluminum material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 500 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Pink, primary color Silver, die index 16A,
