Ilsco - Ilsco ACM-600 Aluminum Compression Pigtail Adaptor, Conductor Size 600, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669009262
Applications - Terminating Connector
Catalog Number - ACM-600
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669009262
Part #
312319
Catalog #
ACM-600
Commercial reference
ACM-600
12-Digit UPC:
783669009262
Applications:
Terminating Connector
Catalog Number:
ACM-600
Color:
Silver
Conductor Material:
Aluminum,Copper
Conductor Size:
600 kcmil
ERP_productname:
ILS ACM-600 600MCM ALUM PIN CONN
Family Brand Name:
Ilsco
Heights:
1.64 Inch
Length:
4.894 Inch
Material:
Aluminum
Number of Conductors:
1
Size:
L:4.894;W:1.64;H:1.64 IN
Sub Brand:
ClearChoice
Type:
Long Sleeve, Round
Voltage:
600 Volt
Widths:
1.64 in
SoneparProductId:
SKU_US_25615141

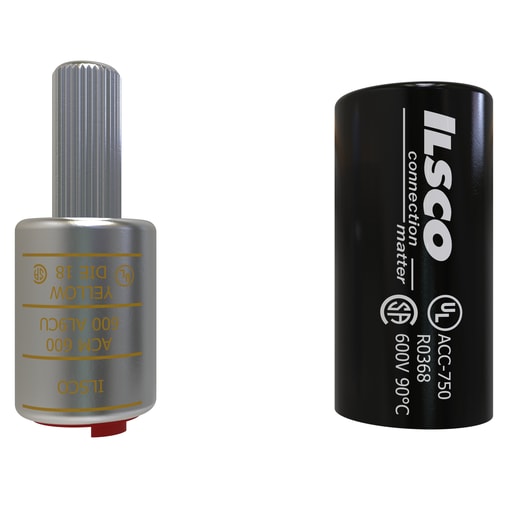

ILSCO Aluminum Pigtail Adaptor, Compression connection, Dual Rated, Aluminum material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 600 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Yellow, primary color Silver, die index 18,
