Ilsco - Ilsco ACM-750 Aluminum Compression Pigtail Adaptor, Conductor Size 750, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669009286
Applications - Terminating Connector
Catalog Number - ACM-750
Color - Yellow
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669009286
Part #
219735
Catalog #
ACM-750
Commercial reference
ACM-750
12-Digit UPC:
783669009286
Applications:
Terminating Connector
Catalog Number:
ACM-750
Color:
Yellow
Conductor Material:
Aluminum,Copper
Conductor Size:
700-750 kcmil
ERP_productname:
ILS ACM-750 AL CMP 750 T UL CSA PIGTAIL
Family Brand Name:
Ilsco
Heights:
1.64 Inch
Length:
5.005 Inch
Material:
Aluminum
Number of Conductors:
1
Size:
L:5.005;W:1.64;H:1.64 IN
Sub Brand:
ClearChoice
Type:
Long, Round
Voltage:
600 Volt
Widths:
1.64 in
SoneparProductId:
SKU_US_25621454

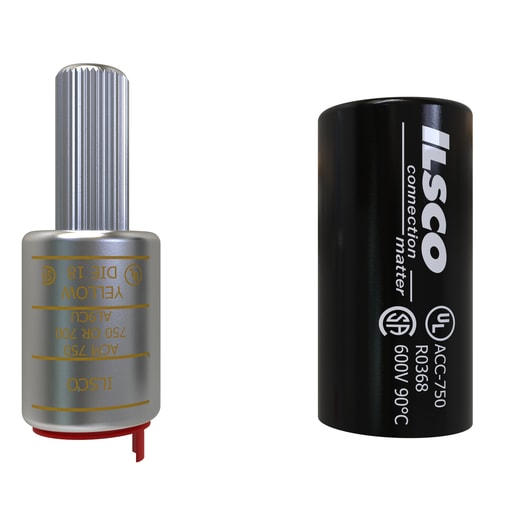

ILSCO Aluminum Pigtail Adaptor, Compression connection, Dual Rated, Aluminum material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 750 kcmil, 700 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Yellow, primary color Silver, die index 18,
