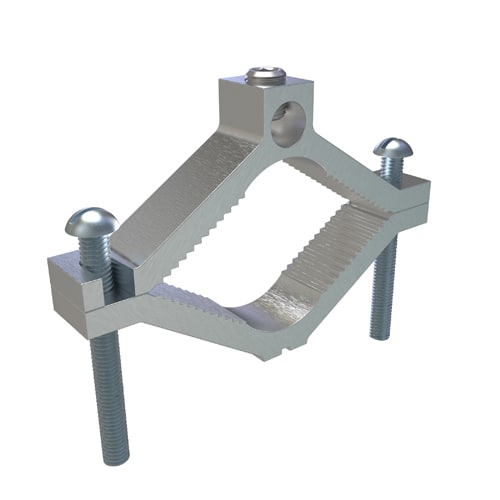

Ilsco - Ilsco AGC-4 Permaground Aluminum Ground Clamp, Conductor Range 250-6, Pipe Sizes 2-1/2 to 4in, UL
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669000641
Applications - Ground Clamp Connector
Catalog Number - AGC-4
Conductor Material - Aluminum,Copper
ERP_productname - ILS AGC-4 AL MEC 21/2-3-31/2-4 GND 250-6W UL
Packaging
1 ea
EAN
00783669000641
Part #
278930
Catalog #
AGC-4
Commercial reference
AGC-4
12-Digit UPC:
783669000641
Applications:
Ground Clamp Connector
Catalog Number:
AGC-4
Conductor Material:
Aluminum,Copper
ERP_productname:
ILS AGC-4 AL MEC 21/2-3-31/2-4 GND 250-6W UL
Family Brand Name:
Ilsco
Finish:
Tin Plated
Heights:
4.063 Inch
Length:
6.312 Inch
Material:
Aluminum
Number of Conductors:
1
Sub Brand:
ClearChoice
Tc Connection:
Mechanical
Type:
AGC:GRD CLAMP AL/CU
Voltage:
600 Volt
Widths:
1 in
SoneparProductId:
SKU_US_25330837
Permaground Ground Clamp Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 467 Listed, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, 1 conductors, 1 ports/wireways, pipe size 2-1/2, 3, 3-1/2, 4, Drive Type Main 5/16 Internal Hex,
