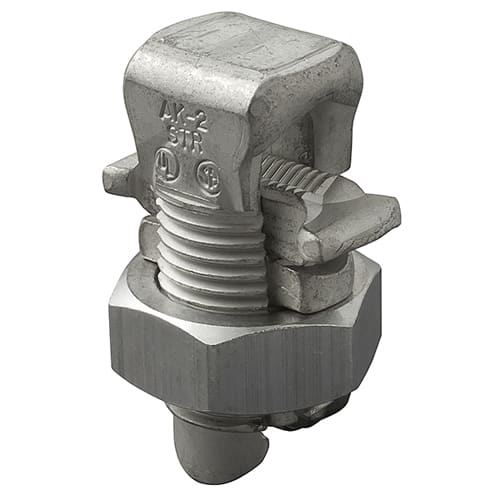

Ilsco - Ilsco AK-2 Aluminum Split Bolt, Main Range 2-6, Tap Range 2-8, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669008326
Applications - Aluminum/Copper Conductors
Catalog Number - AK-2
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669008326
Part #
108746
Catalog #
AK-2
Commercial reference
AK-2
12-Digit UPC:
783669008326
Applications:
Aluminum/Copper Conductors
Catalog Number:
AK-2
Color:
Silver
Conductor Material:
Aluminum,Copper
ERP_productname:
ILS AK-2 2AWG ALUM SPLIT BOLT
Family Brand Name:
Ilsco
Finish:
Electro-Tin Plated
Heights:
0.69 Inch
Length:
1.88 Inch
Material:
Aluminum
Number of Conductors:
1
Sub Brand:
ClearChoice
Tc Connection:
Mechanical
Type:
AK:AL/CU SPLIT BOLT
Voltage:
35 Volt
Widths:
0.94 in
SoneparProductId:
SKU_US_25333115
ILSCO Split Bolt, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65, C22.2 No. 188, Copper/Aluminum Primary Conductor 2 Str - 6 Str COMPACT, Copper/Aluminum Secondary Conductor 2 Str - 8 Str, 1 conductors, 1 ports/wireways, Drive Type Main 11/16, 15/16 External Hex, rated for 35 kV, primary color Silver, 1 poles,
