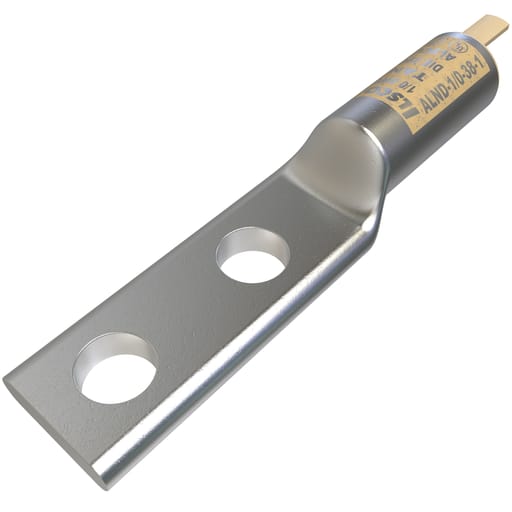

Ilsco - Ilsco ALND-1/0-38-1 SureCrimp® Aluminum Compression Lug, Conductor Size 1/0, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669690668
Applications - Aluminum Compression Lug
Catalog Number - ALND-1/0-38-1
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669690668
Part #
337009
Catalog #
ALND-1/0-38-1
Commercial reference
ALND-1/0-38-1
12-Digit UPC:
783669690668
Applications:
Aluminum Compression Lug
Catalog Number:
ALND-1/0-38-1
Color:
Silver
Conductor Material:
Aluminum,Copper
ERP_productname:
ILS ALND-1/0-38-1 AL COMP 1/0 AWG 13/32-1 T UL CSA
Family Brand Name:
Ilsco
Heights:
0.634 Inch
Length:
3-1/2 Inch
Material:
Aluminum
Number of Holes:
2 Hole
Size:
L:3.5;W:0.819;H:0.634 IN
Sub Brand:
Surecrimp
Type:
ALND:2 HOLE LONG BARREL
Voltage:
35 Volt
Widths:
0.819 in
SoneparProductId:
SKU_US_25580135
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 3/8 in, mounting hole spacing 1 in., UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 1/0 Str, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Tan, primary color Silver, die index 296,
