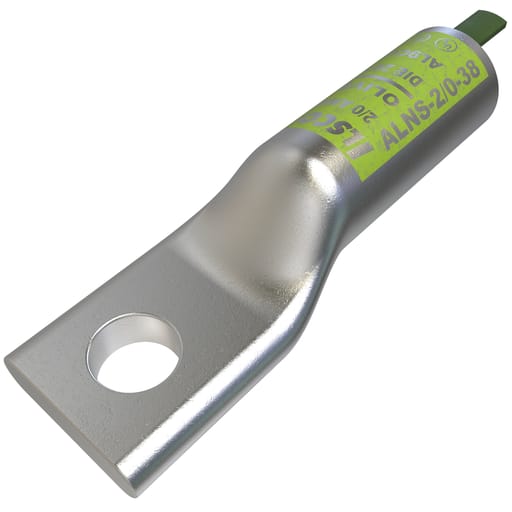

Ilsco - Ilsco ALNS-2/0-38 SureCrimp® Aluminum Compression Lug, Conductor Size 2/0, 1 Hole, 3/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669690392
Applications - Aluminum Compression Lug
Catalog Number - ALNS-2/0-38
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669690392
Part #
335506
Catalog #
ALNS-2/0-38
Commercial reference
ALNS-2/0-38
12-Digit UPC:
783669690392
Applications:
Aluminum Compression Lug
Catalog Number:
ALNS-2/0-38
Color:
Silver
Conductor Material:
Aluminum,Copper
ERP_productname:
ILS ALNS-2/0-38 AL COMP 2/0 AWG 13/32 T UL CSA
Family Brand Name:
Ilsco
Heights:
0.79 Inch
Length:
2.91 Inch
Material:
Aluminum
Number of Holes:
1 Hole
Size:
L:2.91;W:0.921;H:0.709 IN
Sub Brand:
SureCrimp®
Type:
ALNS:1 HOLE LONG BARREL
Voltage:
35 Volt
Widths:
0.921 in
SoneparProductId:
SKU_US_25403003
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 2/0 Str, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Olive, primary color Silver, die index 297,
