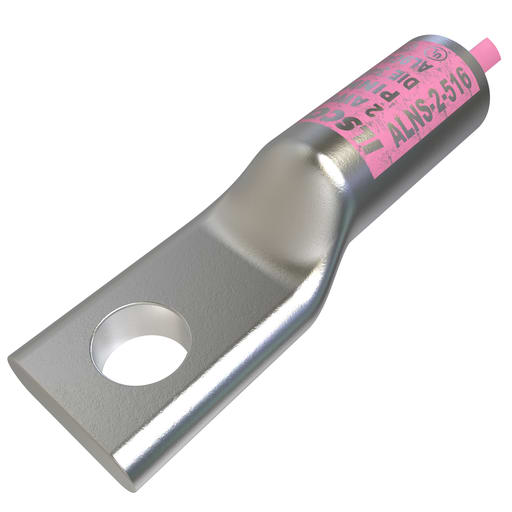

Ilsco - Ilsco ALNS-2-516 SureCrimp® Aluminum Compression Lug, Conductor Size 2, 1 Hole, 5/16in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669690507
Applications - Aluminum Compression Lug
Catalog Number - ALNS-2-516
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669690507
Part #
399125
Catalog #
ALNS-2-516
Commercial reference
ALNS-2-516
12-Digit UPC:
783669690507
Applications:
Aluminum Compression Lug
Catalog Number:
ALNS-2-516
Color:
Silver
Conductor Material:
Aluminum,Copper
ERP_productname:
ILS ALNS-2-516 AL COMP 2 AWG 11/32 T UL CSA
Family Brand Name:
Ilsco
Heights:
0.555 Inch
Length:
2.24 Inch
Material:
Aluminum
Number of Holes:
1 Hole
Size:
L:2.24;W:0.7;H:0.555 IN
Sub Brand:
Surecrimp
Type:
ALNS:1 HOLE LONG BARREL
Voltage:
35 Volt
Widths:
0.7 in
SoneparProductId:
SKU_US_29723648
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 5/16 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 2 Str, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Pink, primary color Silver, die index 348,
