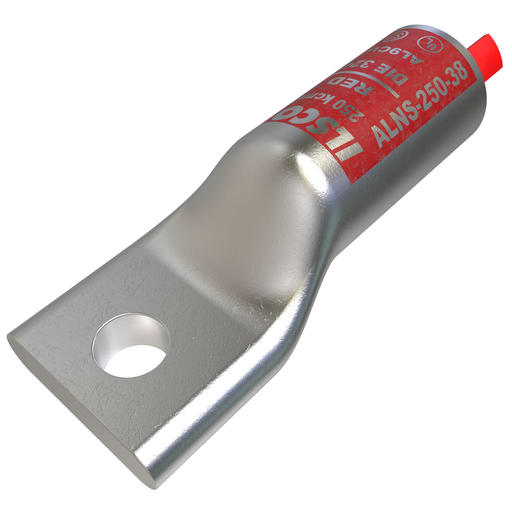

Ilsco - Ilsco ALNS-250-38 SureCrimp® Aluminum Compression Lug, Conductor Size 250, 1 Hole, 3/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669687446
Applications - Aluminum Compression Lug
Catalog Number - ALNS-250-38
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669687446
Part #
395793
Catalog #
ALNS-250-38
Commercial reference
ALNS-250-38
12-Digit UPC:
783669687446
Applications:
Aluminum Compression Lug
Catalog Number:
ALNS-250-38
Color:
Silver
Conductor Material:
Aluminum,Copper
ERP_productname:
ILS ALNS-250-38 AL COMP 250 KCMIL 13/32 T UL CSA
Family Brand Name:
Ilsco
Heights:
0.964 Inch
Length:
3.225 Inch
Material:
Aluminum
Number of Holes:
1 Hole
Size:
L:3.225;W:1.264;H:0.964 IN
Sub Brand:
Surecrimp
Type:
ALNS:1 HOLE LONG BARREL
Voltage:
35 Volt
Widths:
1.264 in
SoneparProductId:
SKU_US_29709013
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 250 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Red, primary color Silver, die index 324,
