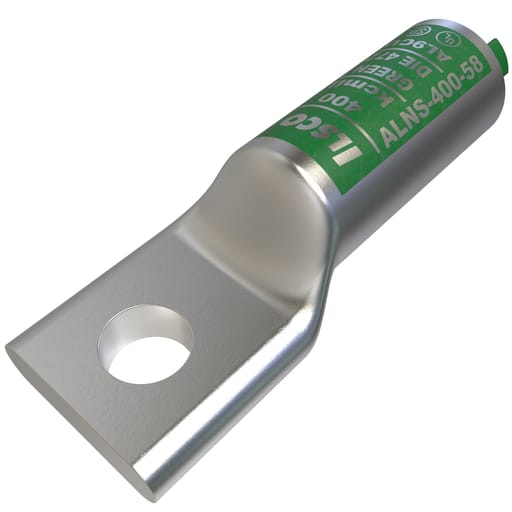

Ilsco - Ilsco ALNS-400-58 SureCrimp® Aluminum Compression Lug, Conductor Size 400, 1 Hole, 5/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669687675
Applications - Aluminum Compression Lug
Catalog Number - ALNS-400-58
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669687675
Part #
459164
Catalog #
ALNS-400-58
Commercial reference
ALNS-400-58
12-Digit UPC:
783669687675
Applications:
Aluminum Compression Lug
Catalog Number:
ALNS-400-58
Color:
Silver
Conductor Material:
Aluminum,Copper
ERP_productname:
ILS ALNS-400-58 AL COMP 400 KCMIL 21/32 T UL CSA
Family Brand Name:
Ilsco
Heights:
1.233 Inch
Length:
4.42 Inch
Material:
Aluminum
Number of Holes:
1 Hole
Size:
L:4.42;W:1.623;H:1.233 IN
Sub Brand:
SureCrimp®
Type:
ALNS:1 HOLE LONG BARREL
Voltage:
35 Volt
Widths:
1.623 in
SoneparProductId:
SKU_US_29723317
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 5/8 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 400 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Green, primary color Silver, die index 472,
