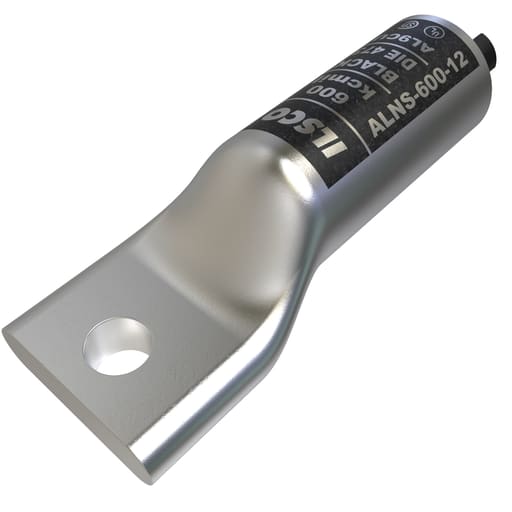

Ilsco - Ilsco ALNS-600-12 SureCrimp® Aluminum Compression Lug, Conductor Size 600, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669687804
Applications - Aluminum Compression Lug
Catalog Number - ALNS-600-12
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669687804
Part #
322433
Catalog #
ALNS-600-12
Commercial reference
ALNS-600-12
12-Digit UPC:
783669687804
Applications:
Aluminum Compression Lug
Catalog Number:
ALNS-600-12
Color:
Silver
Conductor Material:
Aluminum,Copper
ERP_productname:
ILS ALNS-600-12 AL COMP 600 KCMIL 9/16 T UL CSA
Family Brand Name:
Ilsco
Heights:
1.485 Inch
Length:
5.12 Inch
Material:
Aluminum
Number of Holes:
1 Hole
Size:
L:5.12;W:1.965;H:1.485 IN
Sub Brand:
Surecrimp
Type:
ALNS:1 HOLE LONG BARREL
Voltage:
35 Volt
Widths:
1.965 in
SoneparProductId:
SKU_US_30301734
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 600 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Black, primary color Silver, die index 473,
