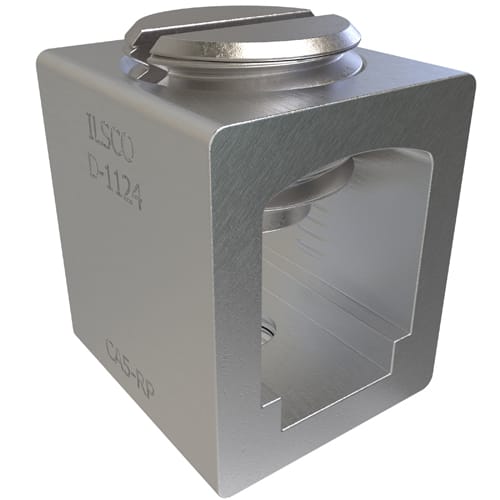

Ilsco - Ilsco CA5RP Aluminum Box-Type Mechanical Lug, Conductor Range 1/0-14 CU, 1/0-12 AL, 1 Hole, Round Boss, Tin Plated
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669022100
Applications - Box-Type Mechanical Lug
Catalog Number - CA5RP
Color - Silver
ERP_productname - ILS CA5RP AL MEC 1/0-14 CU 1/0-12 AL 10/32 T UR CS
Packaging
1 ea
EAN
00783669022100
Part #
173014
Catalog #
CA5RP
Commercial reference
CA5RP
12-Digit UPC:
783669022100
Applications:
Box-Type Mechanical Lug
Catalog Number:
CA5RP
Color:
Silver
ERP_productname:
ILS CA5RP AL MEC 1/0-14 CU 1/0-12 AL 10/32 T UR CS
Family Brand Name:
Ilsco
Finish:
Tin Plated
Material:
Aluminum
Number of Conductors:
1
Sub Brand:
ILSCO
Tc Connection:
Mechanical
Type:
CA:BOX TYPE AL/CU
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_26158520
ILSCO Box-Type Mechanical Lug, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size #10-32 in, UL 486A/B Recognized, C22.2 No. 65-03, Copper Primary Conductor 1/0 Str - 14 Str and 10 Sol - 14 Sol, Aluminum Primary Conductor 1/0 Str - 12 Str and 10 Sol - 12 Sol, 1 conductors, 1 ports/wireways, Drive Type Main Slotted, rated for 35 kV, primary color Silver, 1 poles,
