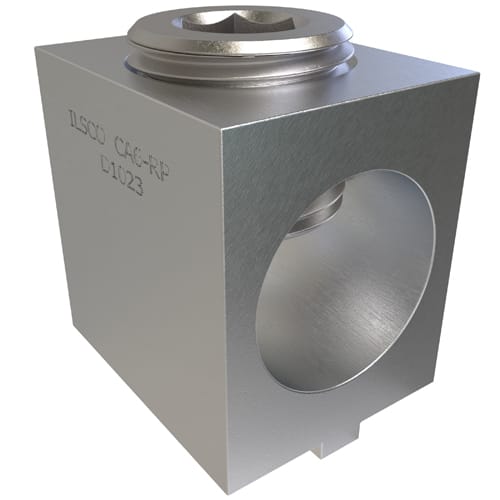

Ilsco - Ilsco CA6RP Aluminum Box-Type Mechanical Lug, Conductor Range 250-6, 1 Hole, Round Boss, Tin Plated
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669022643
Applications - For Tap Connector
Catalog Number - CA6RP
Color - Silver
Conductor Size - 6 AWG-250 kcmil
Packaging
1 ea
EAN
00783669022643
Part #
332238
Catalog #
CA6RP
Commercial reference
CA6RP
12-Digit UPC:
783669022643
Applications:
For Tap Connector
Catalog Number:
CA6RP
Color:
Silver
Conductor Size:
6 AWG-250 kcmil
ERP_productname:
ILS CA6RP 6-250MCM ALCU RECT LUG
Family Brand Name:
Ilsco
Finish:
Electro Tin Plated
Material:
Aluminum
Number of Conductors:
1
Sub Brand:
ClearChoice
Tc Connection:
Mechanical
Type:
CA:BOX TYPE AL/CU
Voltage:
2 kV
SoneparProductId:
SKU_US_31746845
ILSCO Box-Type Mechanical Lug, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 1/4-20 in, UL 486A/B Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, 1 conductors, 1 ports/wireways, Drive Type Main 5/16 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,
