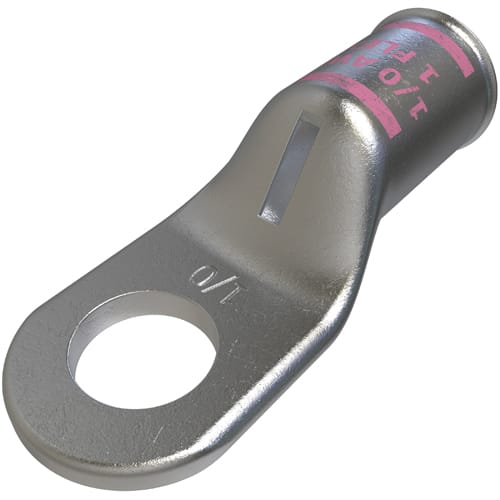

Ilsco - Ilsco CCL-1/0-38 Copper Compression Lug, Conductor Size 1/0, 1 Hole, 3/8in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669031508
Applications - For Terminating Connector
Catalog Number - CCL-1/0-38
Color - Silver
Conductor Size - 1/0 AWG
Packaging
1 ea
EAN
00783669031508
Part #
332319
Catalog #
CCL-1/0-38
Commercial reference
CCL-1/0-38
12-Digit UPC:
783669031508
Applications:
For Terminating Connector
Catalog Number:
CCL-1/0-38
Color:
Silver
Conductor Size:
1/0 AWG
ERP_productname:
ILS CCL-1/0-38 CU CMP 1/0-38 T UL CSA
Family Brand Name:
Ilsco
Finish:
Electro Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1.831 in
Size:
L:1.83;W:0.725;H:0.58 IN
Sub Brand:
ClearChoice
Type:
Non-Insulated, Light Duty, Straight
Voltage:
600 Volt
SoneparProductId:
SKU_US_25309421
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 1/0 Str, sight window, Round tang end, flex conductor range 1 G,H,I,K,M,DLO, rated for 35 kV, die color code Pink, primary color Silver, die index I-42,
