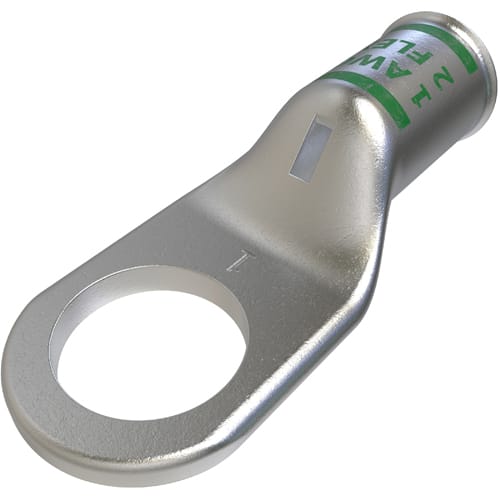

Ilsco - Ilsco CCL-1-12 Copper Compression Lug, Conductor Size 1, 1 Hole, 1/2in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669031447
Applications - Copper Compression Lug
Catalog Number - CCL-1-12
Color - Silver
Conductor Size - 1 AWG
Packaging
1 ea
EAN
00783669031447
Part #
337036
Catalog #
CCL-1-12
Commercial reference
CCL-1-12
12-Digit UPC:
783669031447
Applications:
Copper Compression Lug
Catalog Number:
CCL-1-12
Color:
Silver
Conductor Size:
1 AWG
ERP_productname:
ILS CCL-1-12 CU CMP 1-12 T UL CSA
Family Brand Name:
Ilsco
Finish:
Electro Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1.83 in
Size:
L:1.83;W:0.755;H:0.52 IN
Sub Brand:
ILSCO
Type:
Light Duty
Voltage:
35000 Volt
SoneparProductId:
SKU_US_29441040
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 1 Str, sight window, Round tang end, flex conductor range 2 G,H,I,K,M,DLO, rated for 35 kV, die color code Green, primary color Silver, die index I-37,
