Ilsco - ILSCO CCL-2/0-12 CU CMP 2/0-12 T UL
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669031607
Applications - Terminating Connector
Catalog Number - CCL-2/0-12
Color - Silver
Conductor Size - 2/0 AWG
Packaging
1 ea
EAN
00783669031607
Part #
335288
Catalog #
CCL-2/0-12
Commercial reference
CCL-2/0-12
12-Digit UPC:
783669031607
Applications:
Terminating Connector
Catalog Number:
CCL-2/0-12
Color:
Silver
Conductor Size:
2/0 AWG
ERP_productname:
ILS CCL-2/0-12 CU CMP 2/0-12 T UL CSA
Family Brand Name:
Ilsco
Finish:
Electro Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
2.06 in
Size:
L:2.06;W:0.815;H:0.63 IN
Sub Brand:
ClearChoice
Type:
Light Duty
Voltage:
35000 Volt
SoneparProductId:
SKU_US_29491465

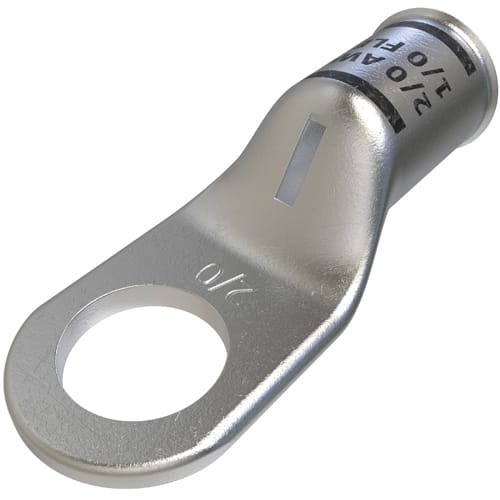

ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 2/0 Str, sight window, Round tang end, flex conductor range 1/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Black, primary color Silver, die index I-45,
