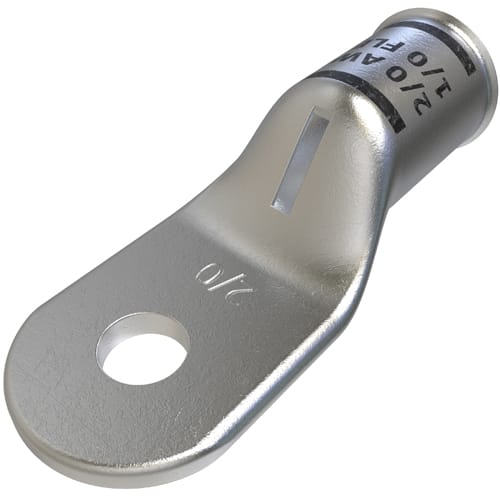

Ilsco - Ilsco CCL-2/0-14 Copper Compression Lug, Conductor Size 2/0, 1 Hole, 1/4in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669031546
Applications - Terminating Connector
Catalog Number - CCL-2/0-14
Color - Silver
ERP_productname - ILS CCL-2/0-14 CU CMP 2/0-14 T UL CSA
Packaging
1 ea
EAN
00783669031546
Part #
382654
Catalog #
CCL-2/0-14
Commercial reference
CCL-2/0-14
12-Digit UPC:
783669031546
Applications:
Terminating Connector
Catalog Number:
CCL-2/0-14
Color:
Silver
ERP_productname:
ILS CCL-2/0-14 CU CMP 2/0-14 T UL CSA
Family Brand Name:
Ilsco
Material:
Copper
Size:
L:2.06;W:0.815;H:0.63 IN
Sub Brand:
ClearChoice
Type:
Light Duty
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_32244975
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 2/0 Str, sight window, Round tang end, flex conductor range 1/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Black, primary color Silver, die index I-45,
