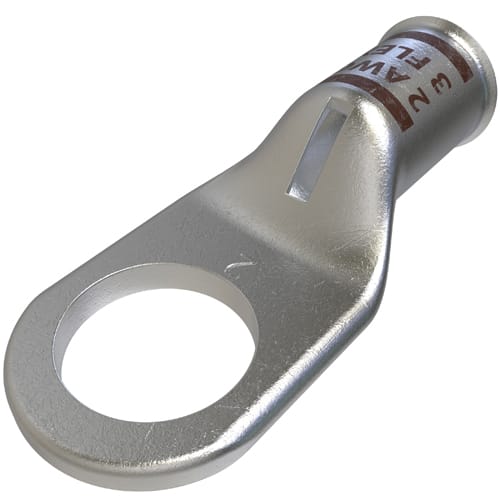

Ilsco - Ilsco CCL-2-12 Copper Compression Lug, Conductor Size 2, 1 Hole, 1/2in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669031362
Applications - Terminating Connector
Catalog Number - CCL-2-12
Color - Silver
Conductor Size - 2 AWG
Packaging
1 ea
EAN
00783669031362
Part #
337014
Catalog #
CCL-2-12
Commercial reference
CCL-2-12
12-Digit UPC:
783669031362
Applications:
Terminating Connector
Catalog Number:
CCL-2-12
Color:
Silver
Conductor Size:
2 AWG
ERP_productname:
ILS CCL-2-12 CU CMP 2-12 T UL CSA
Family Brand Name:
Ilsco
Finish:
Electro-Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1.752 in
Size:
L:1.75;W:0.755;H:0.5 IN
Sub Brand:
ClearChoice
Type:
Light Duty, Straight, 1-Hole
Voltage:
600 Volt
SoneparProductId:
SKU_US_29914692
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 2 Str, sight window, Round tang end, flex conductor range 3 G,H,I,K,M,DLO, rated for 35 kV, die color code Brown, primary color Silver, die index I-33,
