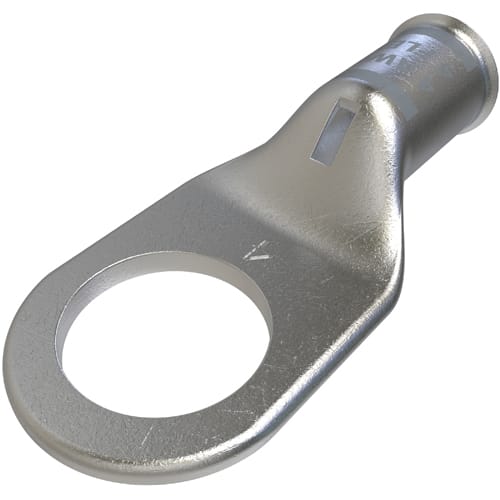

Ilsco - Ilsco CCL-4-12 Copper Compression Lug, Conductor Size 4, 1 Hole, 1/2in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669031287
Applications - Copper Compression Lug
Catalog Number - CCL-4-12
Color - Silver
Conductor Size - 4 AWG
Packaging
1 ea
EAN
00783669031287
Part #
431515
Catalog #
CCL-4-12
Commercial reference
CCL-4-12
12-Digit UPC:
783669031287
Applications:
Copper Compression Lug
Catalog Number:
CCL-4-12
Color:
Silver
Conductor Size:
4 AWG
ERP_productname:
ILS CCL-4-12 CU CMP 4-12 T UL CSA
Family Brand Name:
Ilsco
Finish:
Electro Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1.68 in
Size:
L:1.68;W:0.765;H:0.435 IN
Sub Brand:
ILSCO
Type:
Light Duty
Voltage:
35000 Volt
SoneparProductId:
SKU_US_31921587
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 4 Str, sight window, Round tang end, flex conductor range 4 G,H,I,K,M,DLO, rated for 35 kV, die color code Gray, primary color Silver, die index I-29,
