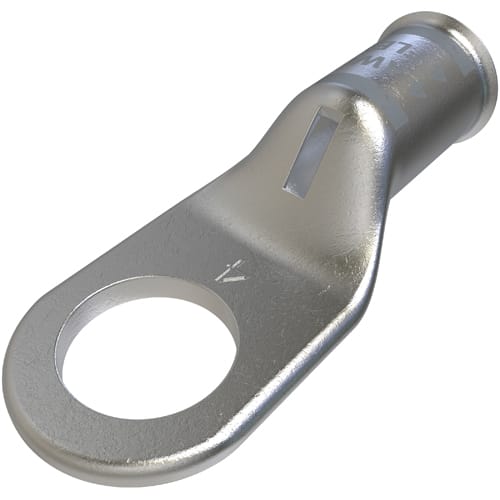

Ilsco - Ilsco CCL-4-38 Copper Compression Lug, Conductor Size 4, 1 Hole, 3/8in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669031263
Applications - Copper Compression Lug
Catalog Number - CCL-4-38
Color - Silver
ERP_productname - ILS CCL-4-38 CU CMP 4-38 T UL CSA
Packaging
1 ea
EAN
00783669031263
Part #
335287
Catalog #
CCL-4-38
Commercial reference
CCL-4-38
12-Digit UPC:
783669031263
Applications:
Copper Compression Lug
Catalog Number:
CCL-4-38
Color:
Silver
ERP_productname:
ILS CCL-4-38 CU CMP 4-38 T UL CSA
Family Brand Name:
Ilsco
Material:
Copper
Size:
L:1.53;W:0.625;H:0.435 IN
Sub Brand:
ILSCO
Type:
CCL:1 HOLE, LIGHT DUTY
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_25725713
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 4 Str, sight window, Round tang end, flex conductor range 4 G,H,I,K,M,DLO, rated for 35 kV, die color code Gray, primary color Silver, die index I-29,
