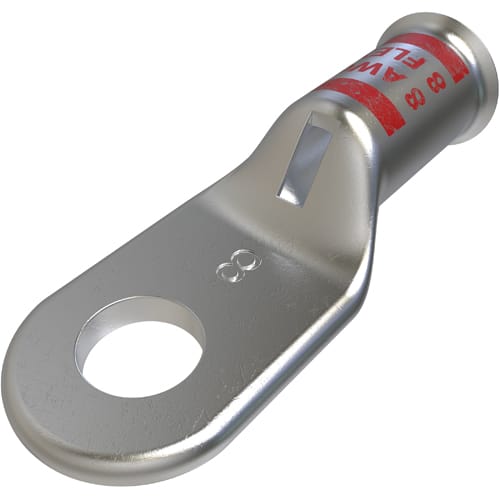

Ilsco - Ilsco CCL-8-10 Copper Compression Lug, Conductor Size 8, 1 Hole, #10 Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669031003
Applications - Copper Compression Lug
Catalog Number - CCL-8-10
Color - Silver
ERP_productname - ILS CCL-8-10 CU CMP 8-10 T UL CSA
Packaging
1 ea
EAN
00783669031003
Part #
337015
Catalog #
CCL-8-10
Commercial reference
CCL-8-10
12-Digit UPC:
783669031003
Applications:
Copper Compression Lug
Catalog Number:
CCL-8-10
Color:
Silver
ERP_productname:
ILS CCL-8-10 CU CMP 8-10 T UL CSA
Family Brand Name:
Ilsco
Material:
Copper
Size:
L:1.165;W:0.445;H:0.33 IN
Sub Brand:
ILSCO
Type:
CCL:1 HOLE, LIGHT DUTY
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_25566330
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size #8, #10 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 8 Str, sight window, Round tang end, flex conductor range 8 G,H,I,K,M,DLO, rated for 35 kV, die color code Red, primary color Silver, die index I-21,
