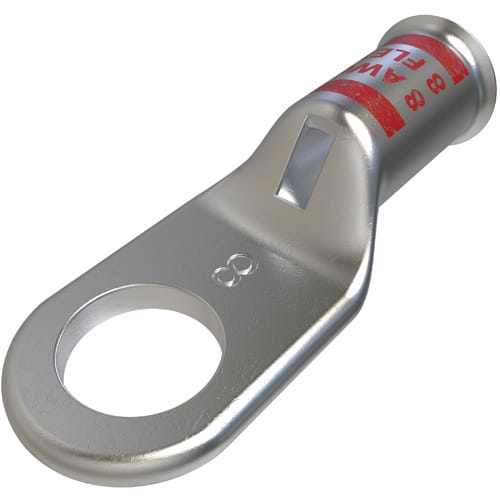

Ilsco - Ilsco CCL-8-14 Copper Compression Lug, Conductor Size 8, 1 Hole, 1/4in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669031027
Applications - Terminating Connector
Catalog Number - CCL-8-14
Color - Silver
Conductor Size - 8 AWG
Packaging
1 ea
EAN
00783669031027
Part #
335286
Catalog #
CCL-8-14
Commercial reference
CCL-8-14
12-Digit UPC:
783669031027
Applications:
Terminating Connector
Catalog Number:
CCL-8-14
Color:
Silver
Conductor Size:
8 AWG
ERP_productname:
ILS CCL-8-14 CU CMP 8-14 T UL CSA
Family Brand Name:
Ilsco
Finish:
Electro-Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1.201 in
Size:
L:1.165;W:0.445;H:0.33 IN
Sub Brand:
ClearChoice
Type:
Light Duty
Voltage:
600 Volt
SoneparProductId:
SKU_US_25706561
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 8 Str, sight window, Round tang end, flex conductor range 8 G,H,I,K,M,DLO, rated for 35 kV, die color code Red, primary color Silver, die index I-21,
