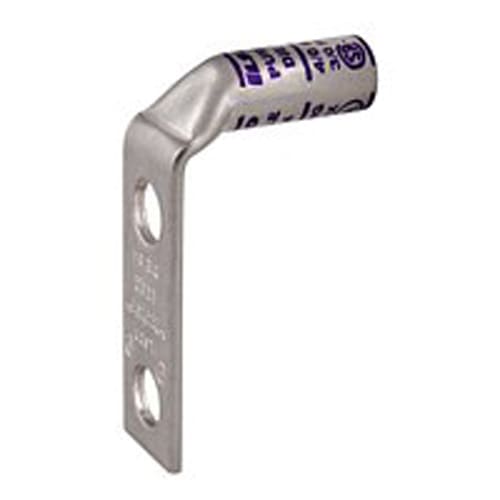

Ilsco - Ilsco CLNB-500-38-1-9 SureCrimp® Copper Compression Lug, Conductor Size 500, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, 90? Bent Tang, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669681291
Applications - Copper Compression Lug
Catalog Number - CLNB-500-38-1-9
Color - Silver
Conductor Size - 250 kcmil
Packaging
1 ea
EAN
00783669681291
Part #
148717
Catalog #
CLNB-500-38-1-9
Commercial reference
CLNB-500-38-1-9
12-Digit UPC:
783669681291
Applications:
Copper Compression Lug
Catalog Number:
CLNB-500-38-1-9
Color:
Silver
Conductor Size:
250 kcmil
ERP_productname:
ILS CLNB-500-38-1-9 CUCMP 500K 90DEG 13/32-1 T ULCSA
Family Brand Name:
Ilsco
Material:
Copper
Size:
L:3.153;W:1.535;H:3.386 IN
Sub Brand:
Surecrimp
Type:
CLN9:LONG BENT TANG 90
Voltage:
600 Volt
SoneparProductId:
SKU_US_89569632
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, narrow tang, 2 mounting hole(s), mounting bolt/stud size 3/8 in, mounting hole spacing 1 in., UL 486A/B Listed, C22.2 No. 65-03, 90. connecting angle, Copper Primary Conductor 500 kcmil, Contains DE-OX®, no sight window, Square tang end, flex conductor range 350 G,H,I,K,M 373.7 DLO, rated for 35 kV, die color code Brown, primary color Silver, die index I-87,
