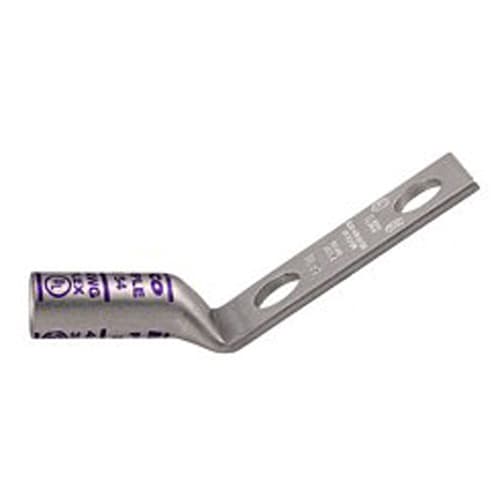

Ilsco - Ilsco CLNB-6-14-34-4 SureCrimp® Copper Compression Lug, Conductor Size 6, 2 Holes, 1/4in Bolt Size, 3/4in Hole Spacing, Long Barrel, No Sight Window, 45? Bent Tang, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669654530
Applications - Copper Compression Lug
Catalog Number - CLNB-6-14-34-4
Color - Silver
Conductor Size - 6 AWG
Packaging
1 ea
EAN
00783669654530
Part #
488458
Catalog #
CLNB-6-14-34-4
Commercial reference
CLNB-6-14-34-4
12-Digit UPC:
783669654530
Applications:
Copper Compression Lug
Catalog Number:
CLNB-6-14-34-4
Color:
Silver
Conductor Size:
6 AWG
ERP_productname:
ILS CLNB-6-14-34-4 CUCMP 6AWG 45DEG 9/32-3/4 T ULCSA
Family Brand Name:
Ilsco
Material:
Copper
Size:
L:2.55;W:0.44;H:1.2 IN
Sub Brand:
Surecrimp
Type:
CLN4:LONG BENT TANG 45
Voltage:
600 Volt
SoneparProductId:
SKU_US_73758988
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/4 in, mounting hole spacing 0.75 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 45. connecting angle, Copper Primary Conductor 6 Sol, 6 Str, Contains DE-OX®, no sight window, Square tang end, flex conductor range 6 G,H,I,K,M,DLO, rated for 35 kV, die color code Blue, primary color Silver, die index I-24,
