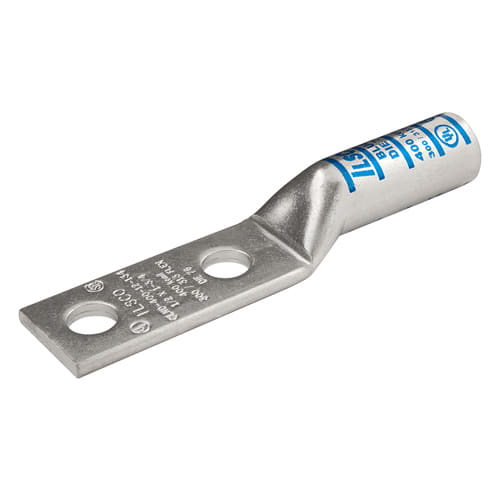

Ilsco - Ilsco CLND-3/0-14-34 SureCrimp® Copper Compression Lug, Conductor Size 3/0, 2 Holes, 1/4in Bolt Size, 3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669638783
Applications - Copper Compression Lug
Catalog Number - CLND-3/0-14-34
Color - Silver
Conductor Size - 3/0 AWG
Packaging
1 ea
EAN
00783669638783
Part #
427302
Catalog #
CLND-3/0-14-34
Commercial reference
CLND-3/0-14-34
12-Digit UPC:
783669638783
Applications:
Copper Compression Lug
Catalog Number:
CLND-3/0-14-34
Color:
Silver
Conductor Size:
3/0 AWG
ERP_productname:
ILS CLND-3/0-14-34 CU CMP NO SYT 3/0 AWG 9/32-3/4 T UL CSA
Family Brand Name:
Ilsco
Material:
Copper
Size:
L:3.376;W:0.885;H:0.649 IN
Sub Brand:
Surecrimp
Type:
CLND:2 HOLE LONG BARREL
Voltage:
600 Volt
SoneparProductId:
SKU_US_30199876
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/4 in, mounting hole spacing 0.75 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 3/0 Str, no sight window, Square tang end, flex conductor range 2/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Orange, primary color Silver, die index I-50,
