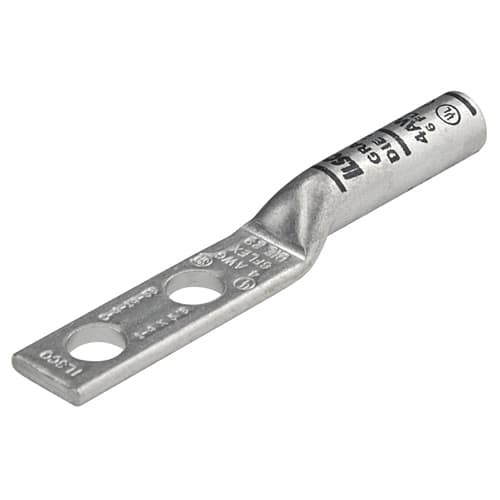

Ilsco - Ilsco CLND-4-14-58 SureCrimp® Copper Compression Lug, Conductor Size 4, 2 Holes, 1/4in Bolt Size, 5/8in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669630787
Applications - Copper Compression Lug
Catalog Number - CLND-4-14-58
Color - Gray,Silver
Conductor Material - Copper
Packaging
1 ea
EAN
00783669630787
Part #
133431
Catalog #
CLND-4-14-58
Commercial reference
CLND-4-14-58
12-Digit UPC:
783669630787
Applications:
Copper Compression Lug
Catalog Number:
CLND-4-14-58
Color:
Gray,Silver
Conductor Material:
Copper
ERP_productname:
ILS CLND-4-14-58 CU CMP NO SYT 4 AWG 9/32-5/8 T UL CSA LO
Family Brand Name:
Ilsco
Heights:
0.373 Inch
Length:
2.796 Inch
Material:
Copper
Number of Holes:
2 Hole
Size:
L:2.796;W:0.486;H:0.373 IN
Sub Brand:
Surecrimp
Type:
CLND:2 HOLE LONG BARREL
Voltage:
35 Volt
Widths:
0.486 in
SoneparProductId:
SKU_US_25763675
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/4 in, mounting hole spacing 0.625 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 4 Sol, 4 Str, no sight window, Square tang end, rated for 35 kV, die color code Gray, primary color Silver, die index I-29,
