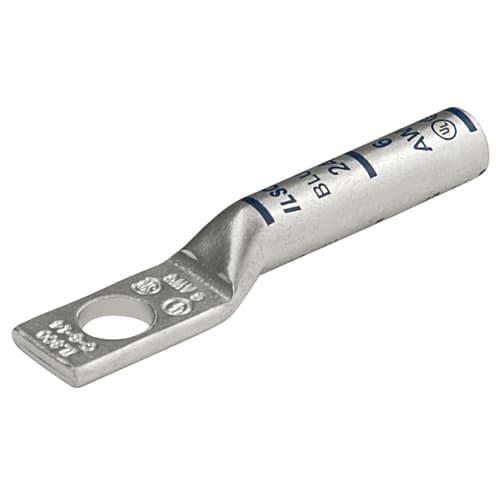

Ilsco - ILSCO CLNS-650-38 CU CMP NO SYT 650
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669647266
Applications - Copper Compression Lug
Catalog Number - CLNS-650-38
Color - Silver
Conductor Size - 350 kcmil
Packaging
1 ea
EAN
00783669647266
Part #
394253
Catalog #
CLNS-650-38
Commercial reference
CLNS-650-38
12-Digit UPC:
783669647266
Applications:
Copper Compression Lug
Catalog Number:
CLNS-650-38
Color:
Silver
Conductor Size:
350 kcmil
ERP_productname:
ILS CLNS-650-38 CU CMP NO SYT 650KCMIL 13/32 T UL CSA LO
Family Brand Name:
Ilsco
Material:
Copper
Size:
L:4.431;W:1.764;H:1.262 IN
Sub Brand:
Surecrimp
Type:
CLNS:1 HOLE LONG BARREL
Voltage:
600 Volt
SoneparProductId:
SKU_US_31537009
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 650 kcmil, Contains DE-OX®, no sight window, Square tang end, flex conductor range 500 G,H,I, K,M 535.3 DLO, rated for 35 kV, die color code Pink, primary color Silver, die index I-99,
