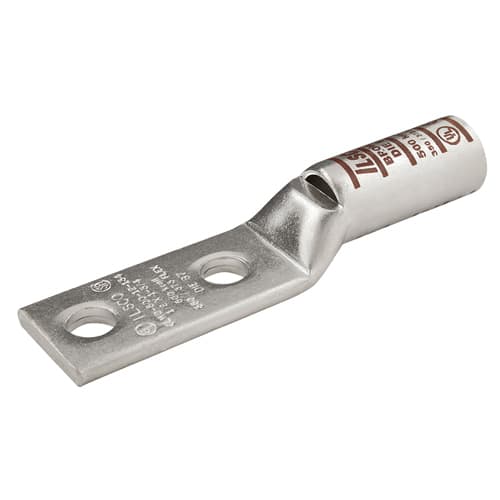

Ilsco - Ilsco CLWD-400-38-116 SureCrimp® Copper Compression Lug, Conductor Size 400, 2 Holes, 3/8in Bolt Size, 1-1/16in Hole Spacing, Long Barrel, Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669644753
Applications - Copper Compression Lug
Catalog Number - CLWD-400-38-116
Color - Silver
Conductor Size - 4/0 AWG
Packaging
1 ea
EAN
00783669644753
Part #
243601
Catalog #
CLWD-400-38-116
Commercial reference
CLWD-400-38-116
12-Digit UPC:
783669644753
Applications:
Copper Compression Lug
Catalog Number:
CLWD-400-38-116
Color:
Silver
Conductor Size:
4/0 AWG
ERP_productname:
ILS CLWD-400-38-116 CU CMP 400KCMIL 13/32-1-1/16TUL CSA LONG
Family Brand Name:
Ilsco
Material:
Copper
Size:
L:4.729;W:1.365;H:0.981 IN
Sub Brand:
Surecrimp
Type:
CLWD:2 HOLE LONG W/SIGHT
Voltage:
600 Volt
SoneparProductId:
SKU_US_29930744
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 3/8 in, mounting hole spacing 1.062 in., UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 400 kcmil, sight window, Square tang end, flex conductor range 300 G,H,I,K,M 313.1 DLO, rated for 35 kV, die color code Blue, primary color Silver, die index I-76,
