Ilsco - Ilsco CPM-1 Copper Compression Pigtail Adaptor, Conductor Size 1, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669008463
Applications - Terminating Connector
Catalog Number - CPM-1
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669008463
Part #
397579
Catalog #
CPM-1
Commercial reference
CPM-1
12-Digit UPC:
783669008463
Applications:
Terminating Connector
Catalog Number:
CPM-1
Color:
Silver
Conductor Material:
Aluminum,Copper
Conductor Size:
1 AWG
ERP_productname:
ILS CPM-1 Pigtail Adaptor #1
Family Brand Name:
Ilsco
Heights:
0.82 Inch
Length:
3 Inch
Material:
Copper
Number of Conductors:
1
Size:
L:3;W:0.82;H:0.82 IN
Sub Brand:
ClearChoice
Type:
Straight
Voltage:
600 Volt
Widths:
0.82 in
SoneparProductId:
SKU_US_25365314

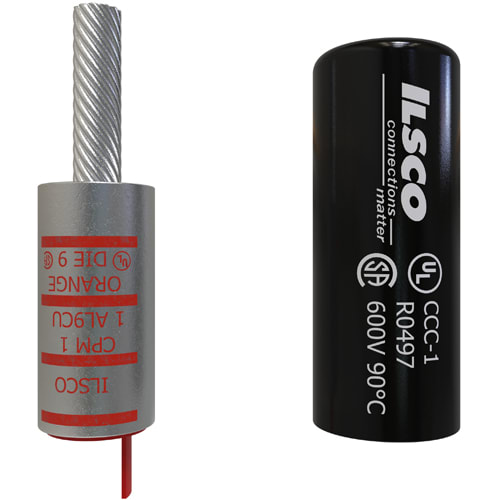

ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 1 Str, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Orange, primary color Silver, die index 9,
