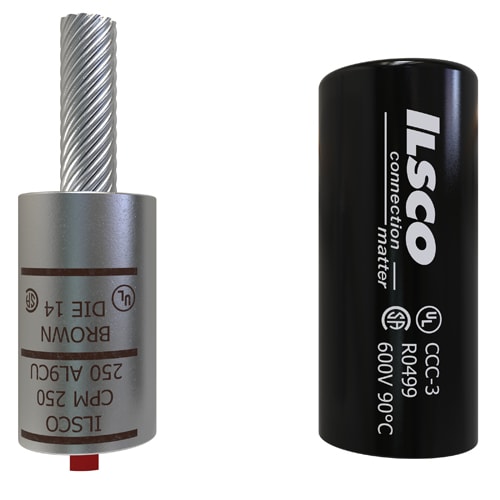

Ilsco - Ilsco CPM-250 Copper Compression Pigtail Adaptor, Conductor Size 250, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669008562
Applications - Terminating Connector
Catalog Number - CPM-250
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669008562
Part #
128901
Catalog #
CPM-250
Commercial reference
CPM-250
12-Digit UPC:
783669008562
Applications:
Terminating Connector
Catalog Number:
CPM-250
Color:
Silver
Conductor Material:
Aluminum,Copper
Conductor Size:
250 kcmil
ERP_productname:
ILS CPM-250 AL CMP 250 UL
Family Brand Name:
Ilsco
Heights:
1.335 Inch
Length:
4-1/2 Inch
Material:
Copper
Number of Conductors:
1
Size:
L:4.5;W:1.335;H:1.335 IN
Sub Brand:
ClearChoice
Type:
Straight
Voltage:
600 Volt
Widths:
1.335 in
SoneparProductId:
SKU_US_25332264
ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 250 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Brown, primary color Silver, die index 14,
