Ilsco - Ilsco CPM-4/0 Copper Compression Pigtail Adaptor, Conductor Size 4/0, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669008548
Applications - Copper Pigtail Adaptor
Catalog Number - CPM-4/0
Color - White
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669008548
Part #
247162
Catalog #
CPM-4/0
Commercial reference
CPM-4/0
12-Digit UPC:
783669008548
Applications:
Copper Pigtail Adaptor
Catalog Number:
CPM-4/0
Color:
White
Conductor Material:
Aluminum,Copper
Conductor Size:
4/0 AWG
ERP_productname:
ILS CPM-4/0 AL CMP 4/0 UL
Family Brand Name:
Ilsco
Heights:
1.086 Inch
Length:
4-1/8 Inch
Material:
Copper
Number of Conductors:
1
Size:
L:4.125;W:1.086;H:1.086 IN
Sub Brand:
ClearChoice
Type:
CPM:AL/CU PIN
Voltage:
600 Volt
Widths:
1.086 in
SoneparProductId:
SKU_US_25353298

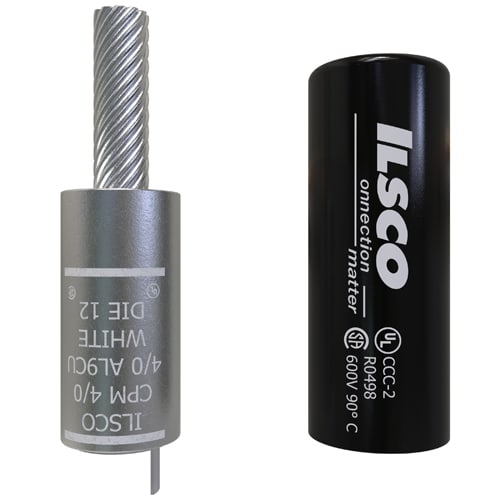

ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 4/0 Str, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code White, primary color Silver, die index 12,
