Ilsco - Ilsco CPM-500 Copper Compression Pigtail Adaptor, Conductor Size 500, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669008647
Applications - Terminating Connector
Catalog Number - CPM-500
Color - Pink
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669008647
Part #
278938
Catalog #
CPM-500
Commercial reference
CPM-500
12-Digit UPC:
783669008647
Applications:
Terminating Connector
Catalog Number:
CPM-500
Color:
Pink
Conductor Material:
Aluminum,Copper
Conductor Size:
500 kcmil
ERP_productname:
ILS CPM-500 AL CMP 500 UL PIGTAIL
Family Brand Name:
Ilsco
Heights:
1.555 Inch
Length:
4-7/8 Inch
Material:
Copper
Number of Conductors:
1
Overall Length:
3.9625 in
Size:
L:4.875;W:1.555;H:1.555 IN
Sub Brand:
ClearChoice
Type:
Straight
Voltage:
600 Volt
Widths:
1.555 in
SoneparProductId:
SKU_US_25323622

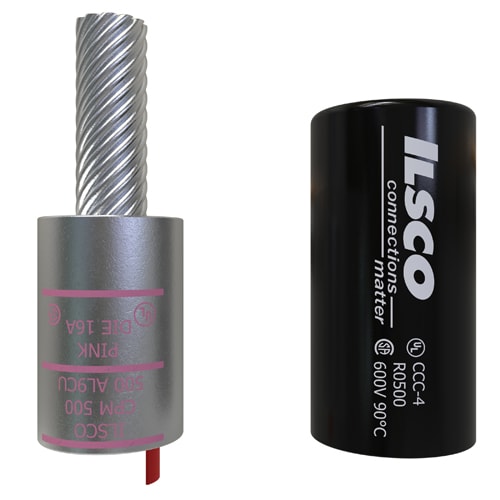

ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 500 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Pink, primary color Silver, die index 16A,
