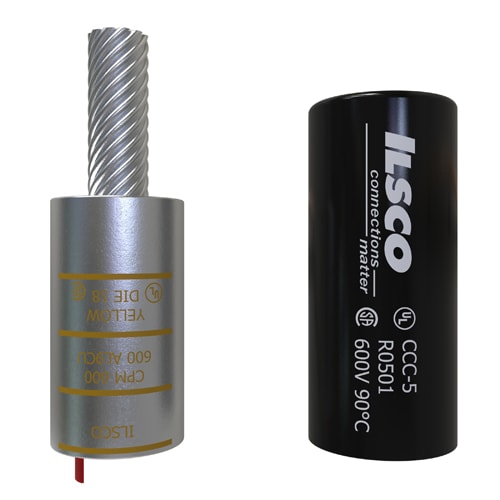

Ilsco - Ilsco CPM-600 Copper Compression Pigtail Adaptor, Conductor Size 600, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669008661
Applications - Terminating Connector
Catalog Number - CPM-600
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669008661
Part #
100854
Catalog #
CPM-600
Commercial reference
CPM-600
12-Digit UPC:
783669008661
Applications:
Terminating Connector
Catalog Number:
CPM-600
Color:
Silver
Conductor Material:
Aluminum,Copper
Conductor Size:
600 kcmil
ERP_productname:
ILS CPM-600 AL CMP 600 UL
Family Brand Name:
Ilsco
Heights:
1.68 Inch
Length:
5-5/8 Inch
Material:
Copper
Number of Conductors:
1
Size:
L:5.625;W:1.68;H:1.68 IN
Sub Brand:
ClearChoice
Type:
Straight
Voltage:
600 Volt
Widths:
1.68 in
SoneparProductId:
SKU_US_25450129
ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 600 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Yellow, primary color Silver, die index 18,
