Ilsco - Ilsco CPML-500 Copper Compression Pigtail Adaptor, Conductor Size 500, Long Barrel, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669008708
Applications - Copper Pigtail Adaptor
Catalog Number - CPML-500
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669008708
Part #
289872
Catalog #
CPML-500
Commercial reference
CPML-500
12-Digit UPC:
783669008708
Applications:
Copper Pigtail Adaptor
Catalog Number:
CPML-500
Color:
Silver
Conductor Material:
Aluminum,Copper
ERP_productname:
ILS CPML-500 500MCM COP ADAPT
Family Brand Name:
Ilsco
Heights:
1.555 Inch
Length:
6 Inch
Material:
Copper
Number of Conductors:
1
Size:
L:6;W:1.555;H:1.555 IN
Sub Brand:
ILSCO
Type:
CPM:AL/CU PIN
Voltage:
600 Volt
Widths:
1.555 in
SoneparProductId:
SKU_US_30881035

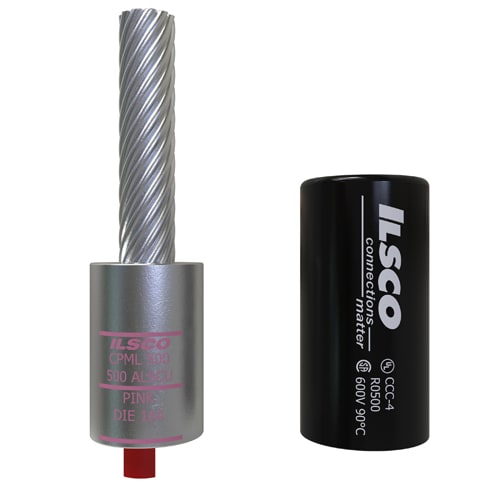

ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Long barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 500 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Pink, primary color Silver, die index 16A,
