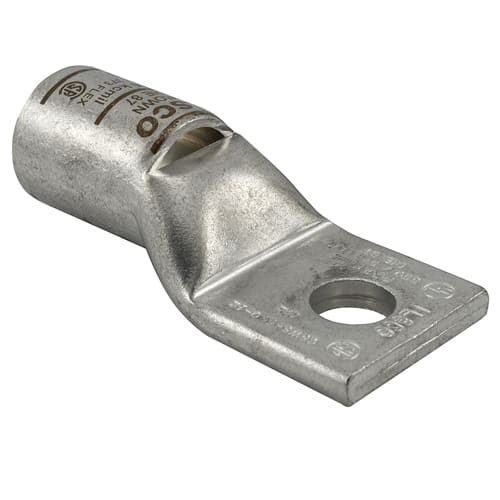

Ilsco - Ilsco CSWS-4/0-14 SureCrimp® Copper Compression Lug, Conductor Size 4/0, 1 Hole, 1/4in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669639575
Applications - Terminating Connector
Catalog Number - CSWS-4/0-14
Color - Silver
Conductor Material - Copper
Packaging
1 ea
EAN
00783669639575
Part #
335403
Catalog #
CSWS-4/0-14
Commercial reference
CSWS-4/0-14
12-Digit UPC:
783669639575
Applications:
Terminating Connector
Catalog Number:
CSWS-4/0-14
Color:
Silver
Conductor Material:
Copper
ERP_productname:
ILS CSWS-4/0-14 CU CMP 4/0 AWG 9/32 T UL CSASHORT BARRE
Family Brand Name:
Ilsco
Heights:
0.729 Inch
Length:
2.241 Inch
Material:
Copper
Number of Holes:
1 Hole
Size:
L:2.241;W:0.999;H:0.729 IN
Sub Brand:
SureCrimp®
Type:
CSWS:1 HOLE SHORT W/SIGHT
Voltage:
35 Volt
Widths:
0.999 in
SoneparProductId:
SKU_US_29297027
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 4/0 Str, sight window, Square tang end, flex conductor range 3/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Purple, primary color Silver, die index I-54,
